Blocks & Rigging – Shackles

SHACKLES

BOW WITH SCREW PIN SLING/SUPER BOW WITH SAFETY BOLT WIDE MOUTH FLUSH PIN TRAWLING FISHING

BOW WITH SCREW PIN

material : HIGH TENSILE STEEL, QUENCHED/TEMPERED

standard : EN 13889

finish: HOT DIPPED GALVANISED

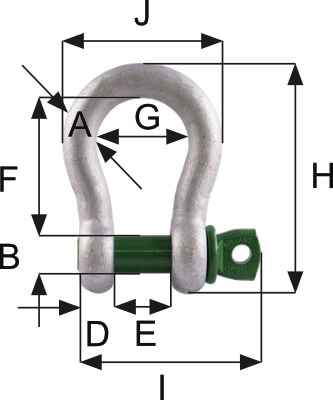

Shackle Bow with Screw Pin

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	WIDTH BOW G [mm]	LENGTH H [mm]	LENGTH BOLT I [mm]	WIDTH J [mm]	WEIGHT EACH [kg]
0.33	5	6	12	5	9.5	22	16	36	29.5	26	0.02
0.05	7	8	16	7	12	29	20	48	38	34	0.05
0.75	9	10	20	9	13.5	32	22	56	46.5	40	0.1
1	10	11	23	10	17	37	26	64	54	46	.13
1.5	11	13	25	11	19	43	29	73	59.5	51	0.18
2	13.5	16	34	13	22	51	32	90	73	59	0.36
3.25	16	19	40	16	27	64	43	110	89	75	0.63
4.75	19	22	46	19	31	76	51	129	103	89	1.01
6.5	22	25	52	22	36	83	58	144	119	102	1.5
8.5	25	28	59	25	43	95	68	164	137	118	2.21
9.5	28	32	67	28	47	108	75	186	153	131	3.16
12	32	35	73	32	51	115	83	201	170	147	4.31
13.5	35	38	79	35	57	133	92	227	186	162	5.58
17	38	42	88	38	60	146	99	249	203	175	7.43
25	45	50	104	45	74	178	126	300	243	216	12.5
35	50	57	112	50	83	197	138	332	272	238	17.2
42.5	57	65	132	57	95	222	160	378	310	274	26.1
55	65	70	145	65	105	260	180	433	344	310	37.6

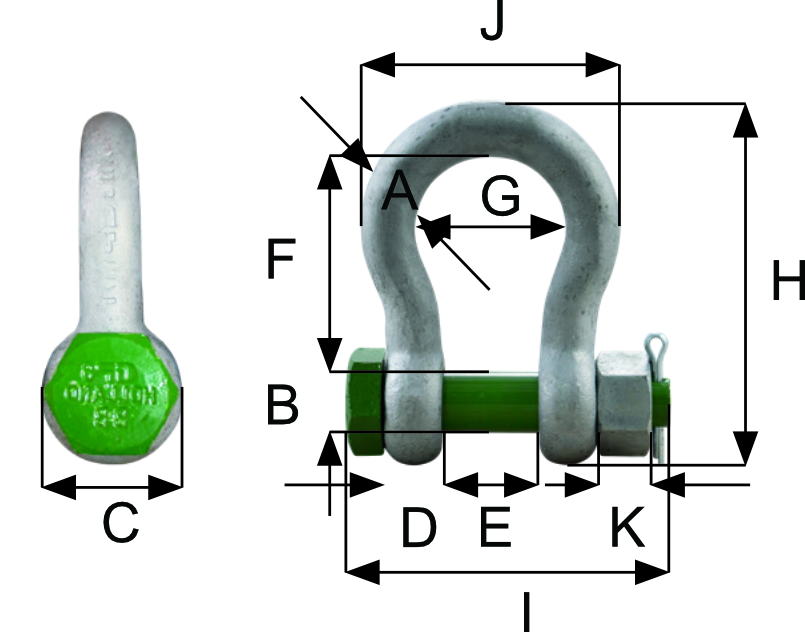

BOW WITH SAFETY BOLT

material : HIGH TENSILE STEEL, QUENCHED/TEMPERED

finish: EN 13889

finish: HOT DIPPED GALVANISED

Blocks & Rigging - Shackles - Bow with safety bolt

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	WIDTH BOW G [mm]	LENGTH H [mm]	LENGTH BOLT I [mm]	WIDTH J [mm]	THICKNESS NUT K [mm]	WEIGHT EACH [kg]
0.5	7	8	16	7	12	29	20	48	42	34	4	0.06
0.75	9	10	20	9	13.5	32	22	56	50	40	5	0.11
1	10	11	23	10	17	37	26	64	60	46	8	0.15
1.5	11	13	25	11	19	43	29	73	67	51	11	0.22
2	13.5	16	34	13	22	51	32	90	80	59	13	0.42
3.25	16	19	40	16	27	64	43	110	98	75	17	0.74
4.75	19	22	46	19	31	76	51	129	115	89	19	1.18
6.5	22	25	52	22	36	83	58	144	130	102	22	1.77
8.5	25	28	59	25	43	95	68	164	150	118	25	2.58
9.5	28	32	67	28	47	108	75	186	166	131	27	3.66
12	32	35	73	32	51	115	83	201	184	147	30	4.91
13.5	35	38	79	35	57	133	92	227	197	162	33	6.54
17	38	42	88	38	60	146	99	249	202	175	19	8.19
25	45	50	104	45	74	178	126	300	243	216	23	14
35	50	57	112	50	83	197	138	332	269	238	26	18.8
42.5	57	65	132	57	95	222	160	378	301	274	29	28.33
55	65	70	145	65	105	260	180	433	329	310	32	39.59
85	75	83	167	75	127	330	190	530	381	340	39	62

SUPER BOW SHACKLE

material : ALLOY STEEL, QUENCHED/TEMPERED

finish: HOT DIPPED GALVANISED

Blocks & Rigging - Shackles - Bow with safety bolt

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	WIDTH BOW G [mm]	LENGTH H [mm]	LENGTH BOLT I [mm]	WIDTH J [mm]	WEIGHT EACH [kg]
3,3	13.5	16	34	13	22	51	32	90	73	59	0.36
5	16	19	40	16	27	64	43	110	89	75	0.63
7	19	22	46	19	31	76	51	129	103	89	1.01
9,5	22	25	52	22	36	83	58	144	119	102	1.5
12,5	25	28	59	25	43	95	68	164	137	118	2.21
15	28	32	67	28	47	108	75	186	153	131	3.16
18	32	35	73	32	51	115	83	201	170	147	4.31
21	35	38	79	35	57	133	92	227	186	162	5.58
30	38	42	88	38	60	146	99	249	203	175	7.43
40	45	50	104	45	74	178	126	300	243	216	12.5
55	57	57	119	57	83	197	138	341	286	252	17.2
85	70	70	145	70	105	260	180	437	354	320	37.6

Wide Mouth

material : ALLOY STEEL

finish: HOT DIPPED GALVANISED

Blocks & Rigging - Shackles - Bow with safety bolt

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	WIDTH BOW G [mm]	LENGTH H [mm]	LENGTH BOLT I [mm]	WIDTH J [mm]	THICKNESS NUT K [mm]	WEIGHT EACH [kg]
4.75	22	25	52	22	63	112	88	173	157	132	22	2.08
6.5	25	28	59	25	75	135	105	204	183	155	25	3.14
8.5	28	32	66	28	82	148	115	225	205	171	27	4.36
9.5	32	35	72	32	90	162	126	248	224	190	3	5.95
12	35	38	79	35	100	180	140	274	245	210	33	7.87
16	38	42	88	38	106	216	159	319	248	235	19	12.5
25	45	50	103	45	127	248	175	370	296	265	23	16.7
30	50	57	118	50	146	273	207	411	332	307	26	25
55	65	70	145	65	165	314	213	487	391	343	32	45
75	83	83	164	83	184	330	254	537	460	420	39	70

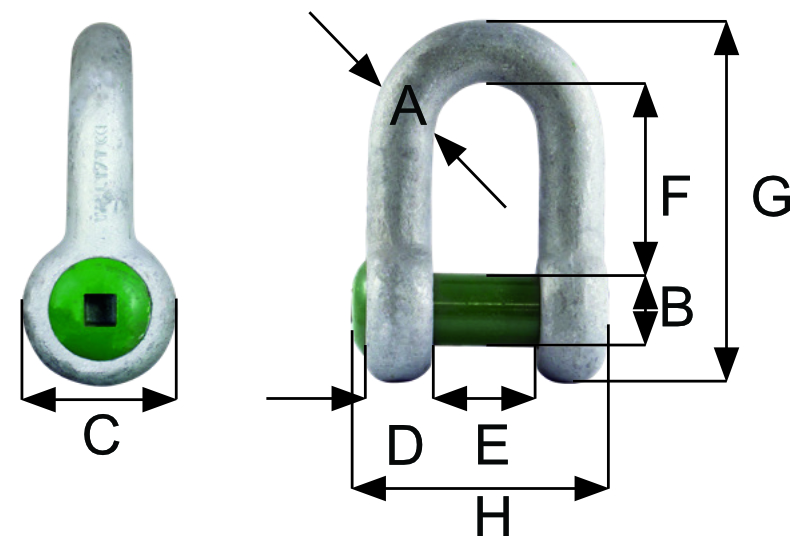

flush pin

material : high tensile STEEL, quenched/tempered

standard: en 13889

finish: HOT DIPPED GALVANISED

blocks and rigging shackles flush pin

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	LENGTH G [mm]	LENGTH BOLT H [mm]	SIZE HOLE I [mm]	WEIGHT EACH [kg]
2	13.5	16	34	13	22	43	81	51	11	.29
3.25	16	19	40	16	27	51	97	63	11	0.6
4.75	19	22	46	19	31	59	112	74	11	0.98
6.5	22	25	52	22	36	73	134	85	13	1.26
8.5	25	28	59	25	43	85	154	99	13	2.14
9.5	28	32	66	28	47	90	167	110	17	3.05
12	32	35	72	32	51	94	180	122	17	3.56
17	38	42	88	38	60	127	230	145	17	6.84

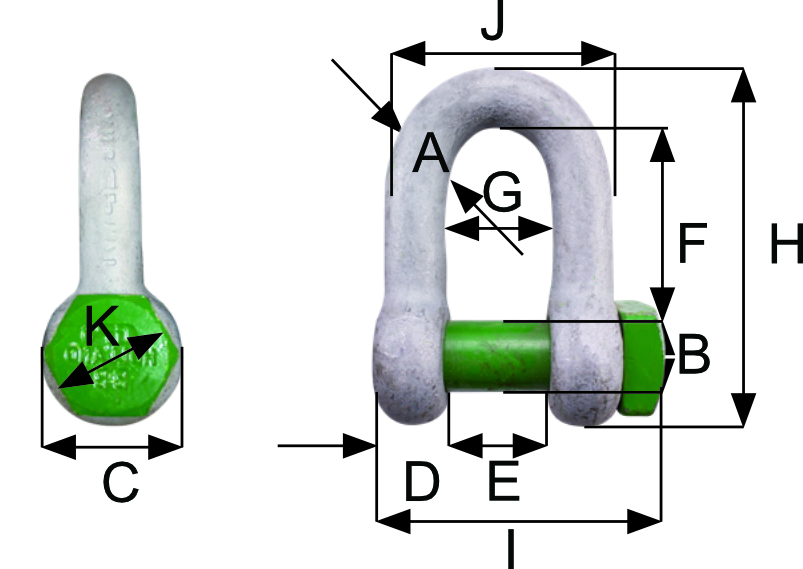

trawling

material : high tensile STEEL, quenched/tempered

finish: HOT DIPPED GALVANISED

blocks and rigging shackles trawling

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	LENGTH G [mm]	LENGTH BOLT H [mm]	THICKNESS BOLT HEADI [mm]	WEIGHT EACH [kg]
2	13.5	16	34	13	22	43	82	57.5	22	0.32
3.25	16	19	40	16	27	51	97	71	27	0.58
4.75	19	22	46	19	31	59	112	82	32	0.92
6.5	22	25	52	22	36	73	134	93	32	1.33
8.5	25	28	59	25	43	85	154	108	36	2.03
9.5	28	32	67	28	47	90	168	120	41	2.75
12	32	35	73	32	51	94	180	137	50	3.96
13.5	35	38	79	35	57	115	209	149	50	5.03
17	38	42	88	38	60	127	230	164	60	6.8
25	45	50	104	45	74	149	271	192	60	11.2

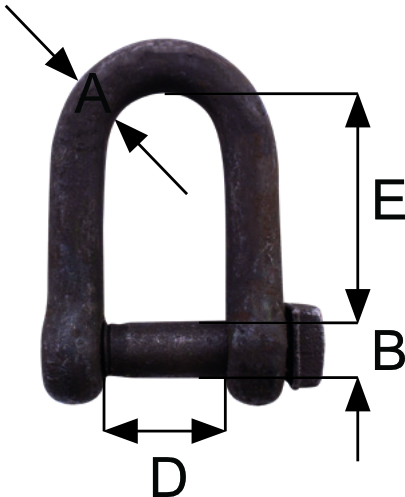

fishing

blocks and rigging shackles fishing

WORKING LOAD LIMIT [t]	DIAMETER BOW A [mm]	DIAMETER PIN B [mm]	DIAMETER EYE C [mm]	WIDTH EYE D [mm]	WIDTH INSIDE E [mm]	LENGTH INSIDE F [mm]	LENGTH G [mm]	LENGTH BOLT H [mm]	THICKNESS BOLT HEADI [mm]	WEIGHT EACH [kg]
2	13.5	16	34	13	22	43	82	57.5	22	0.32
3.25	16	19	40	16	27	51	97	71	27	0.58
4.75	19	22	46	19	31	59	112	82	32	0.92
6.5	22	25	52	22	36	73	134	93	32	1.33
8.5	25	28	59	25	43	85	154	108	36	2.03
9.5	28	32	67	28	47	90	168	120	41	2.75
12	32	35	73	32	51	94	180	137	50	3.96
13.5	35	38	79	35	57	115	209	149	50	5.03
17	38	42	88	38	60	127	230	164	60	6.8
25	45	50	104	45	74	149	271	192	60	11.2
