Blocks & Rigging – Thimbles

thimbles

STANDARD HEAVY DUTY STUB END SOLID TUBULAR

STANDARD

MATERIAL: MILD STEEL
STANDARD: EN 13411 – 1 (FORMERLY BS 464)
FINISH: HOT DIPPED GAVANISED

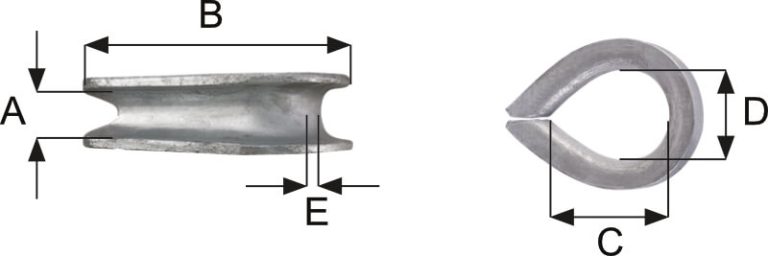

blocking and rigging thimble standard

DIAMETE WIRE ROPE [mm]	WIDTH GROVE A [mm]	INSIDE D [mm]	LENGTH B [mm]	INSIDE C [mm]	THICKNESS BACK E [mm]	WEIGHT 100 PCS [kgs]
6.5	6	19	48	30	3.5	2.8
8	8	22	54	33	4	5.7
10	10	25	64	38	4.8	8
13	14	32	80	44	5.6	18
15	15	32	80	44	5.6	18.9
16	17	41	98	59	7.9	22.4
19	20	51	124	73	9.5	45.6
22	23	57	133	83	9.5	61.5
26	28	70	162	108	10.3	97.3
28	30	76	178	111	12.7	151
32	34	95	197	133	12.7	204

HEAVY DUTY STUB END

MATERIAL: MILD STEEL
STANDARD: N/A
FINISH: HOT DIPPED GAVANISED

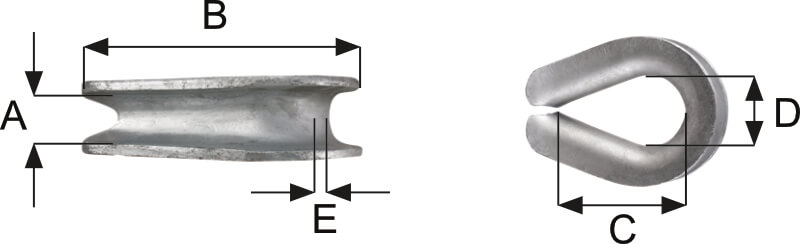

blocking and rigging thimble heavy duty stub end

DIAMETE WIRE ROPE [mm]	WIDTH GROVE A [mm]	INSIDE D [mm]	LENGTH B [mm]	INSIDE C [mm]	THICKNESS BACK E [mm]	WEIGHT 100 PCS [kgs]
36	36	115	229	177	12	363
40	40	120	254	198	12	376
44	44	130	279	214	15	608
50	50	140	305	215	20	960
56	56	160	356	245	20	1400

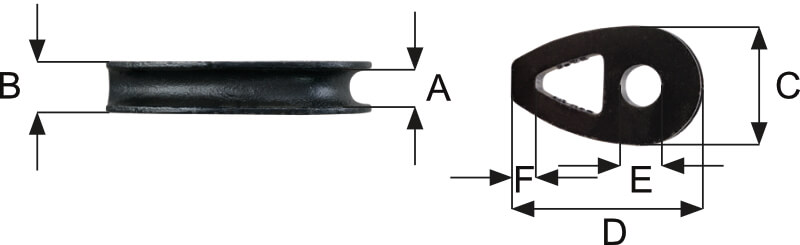

SOLID

MATERIAL: CAST MILD STEEL [GTW 40]
STANDARD: DIN3091
FINISH: SELF COLUR

DIAMETE WIRE ROPE [mm]	WIDTH GROVE A [mm]	C [mm]	B [mm]	LENGTH D [mm]	F [mm]	E [mm]	WEIGHT 100 PCS [kgs]
8	9	40	15	66	-	14	14
10	11	50	17.5	82	-	18	21
12	13	60	20	98	-	21	39
14	16	70	23.5	114	-	25	73
16	18	80	26	130	16	28	83
18	20	90	28.5	145	18	31	113
20	22	100	31	161	20	35	148
22	24	110	33.5	177	22	38	193
24	26	120	36	193	24	41	254
26	29	130	39.5	209	26	44	355
28	31	140	42	224	28	47	387
32	35	160	47	256	32	53	437
36	40	180	53	288	36	59	870

TUBULAR

GUSSET STYLE AVAILABLE

MATERIAL: MILD STEEL
STANDARD: N/A
FINISH: PAINTED

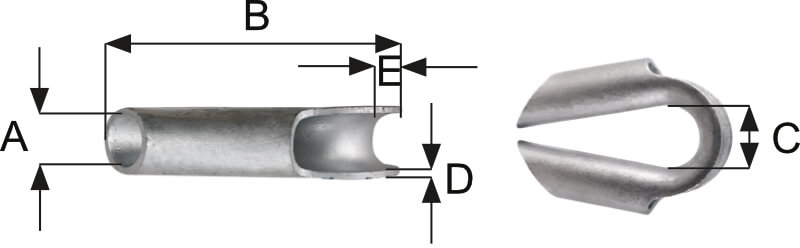

blocking and rigging thimble tubular

DIAMETE WIRE ROPE [mm]	WIDTH GROVE A [mm]	C [mm]	LENGTH B [mm]	LENGTH BLACK D [mm]	HEIGHT E [mm]	WEIGHT 100 PCS [kgs]
10	12	23	90	4	8	0.23
12	15	27	105	5	10	0.4
14	17	27	115	5	10	0.5
16	19	32	120	5	12	0.6
18	22	35	140	5	15	0.75
22	25	45	180	6	16	1.4
24	28	45	180	7	16	1.75
26	30	47	195	7	18	2
32	35	60	215	7	22	2.5
38	45	70	260	7	27	3.5
44	50	75	280	7	28	4.2
