turnbuckles

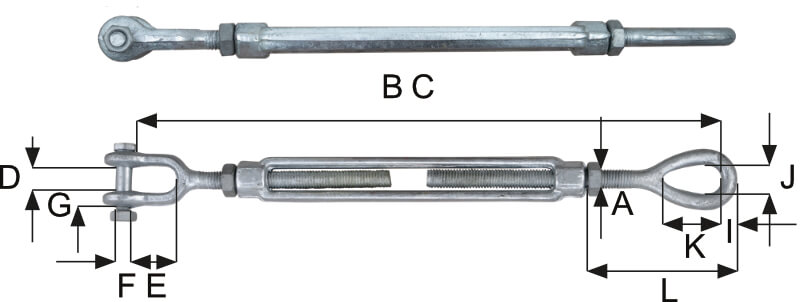

WORKING LOAD LIMIT [t]	DIAMETER THREAD A [mm]	PIN JAW F [mm]	EYE JAW H [mm]	EYE JAW I [mm]	WIDTH INSIDE EYE J [mm]	LENGTH CLOSED POSITION B [mm]	OPEN POSITION C [mm]	INSIDE JAW E [mm}	INSIDE EYE K [mm]	CLOSED POSTION L [MM]	THICKNESS EYE JAW G [mm]	TAKE UP [inch]	OPENING JAW D [mm]	WEIGHT EACH [KG]
0.54	3/8	8	21	10	13	283	418	21	29	49	9	6	13	0.51
1	1/2	9.5	25	12	18	389	597	26	36	57	11	9	16	1.1
1.59	5/8	13	33	14	21	438	638	32	44	79	14	9	18	1.84
2.36	3/4	15.5	41	17	25	541	814	38	54	89	16	12	23	2.74
3.27	7/8	19	48	20	32	580	847	42	61	100	19	12	27	4.35
4.54	1	22	54	22	36	775	1189	50	75	117	20	18	30	7.98
6.9	1 1/4	29	67	29	46	832	1257	71	90	145	26	18	44	11
9.71	1 1/2	35	80	32	54	1022	1593	71	105	160	28	24	52	17.8
12.7	1 3/4	41	90	38	60	1131	1661	86	119	196	33	24	59	27.5
16.78	2	51	108	45	69	1208	1728	93	147	231	41	24	64	42.9
27.22	2 1/2	57	143	51	80	1341	1866	114	165	274	41	24	75	68
34.02	2 3/5	70	156	57	84	1404	1923	110	178	311	41	24	89	91

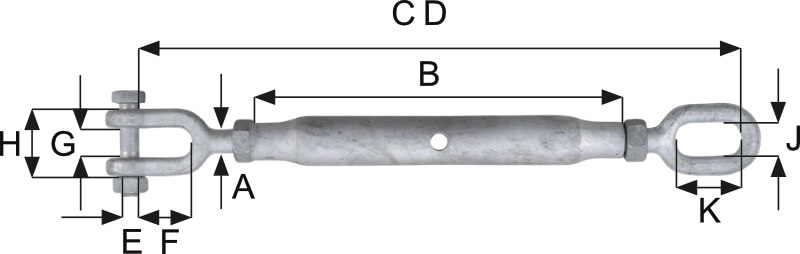

WORKING LOAD LIMIT [t]	DIAMETER THREAD A [mm]	PIN E [mm]	JAW EYE I [mm]	WIDTH JAW H [mm]	INSIDE EYE K [mm]	LENGTH BODY B [mm]	CLOSED POSITION C [mm]	OPEN POSTION D [mm]	JAW INSIDE F [mm]	JAW INSIDE J [mm]	OPENING JAW G [mm]	WEIGHT EACH [KG]
0.2	6	5	13	20	11	100	165	247	16	11	7	0.14
0.32	8	6	14	24	12	108	187	267	22	12	9	0.24
0.5	10	8	19	28	13	125	214	306	22	13	10.5	0.53
0.7	12	10	23	34	15	195	317	475	27	30	13	0.83
1.2	16	12	29	42	20	230	384	562	33	40	18	1.49
1.5	20	16	33	51	24	270	452	657	38	50	20	2.54
2.2	22	20	38	55	24	295	493	717	45	50	25	3.34
3.2	24	22	46	70	28	325	359	791	52	56	30	4.65
4.8	33	30	60	82	35	370	670	952	70	70	38	10.5
6	39	33	76	85	40	400	714	1011	70	80	45	12.8
8.5	45	39	85	94	49	400	741	945	86	49	50	20.8
11	48	45	92	98	52	400	774	1018	97	52	58	24
