wire rope clips

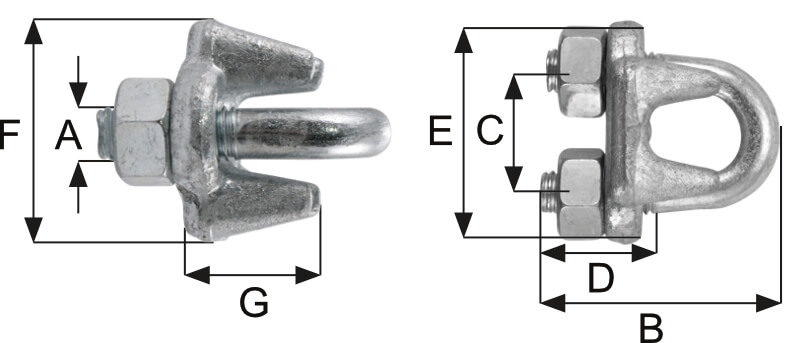

DIAMETE WIRE ROPE [mm]	A [mm]	WIDTH INSIDE C [mm]	LENGTH BOW B [mm]	THREAD D [mm]	BASE E [mm]	THICKNESS BASE F [mm]	HEIGHT BASE G [mm]	WEIGHT 100 PCS [kgs]
5	5	12	25	14	25	13	13	2
6.5	6	14	32	17	30	16	14	4
8	8	18	41	20	39	20	18	8.2
10	8	20	46	24	40	20	21	8.4
12	10	24	56	28	50	25	24	17
13	12	29	64	29	55	28	29	27.5
16	14	34	76	35	64	32	35	43
19	14	37	83	36	68	33	40	49
22	16	41	96	40	74	34	44	68
26	20	46	111	50	84	38	51	111
30	20	54	127	55	95	41	59	140
34	22	60	141	60	105	45	67	202

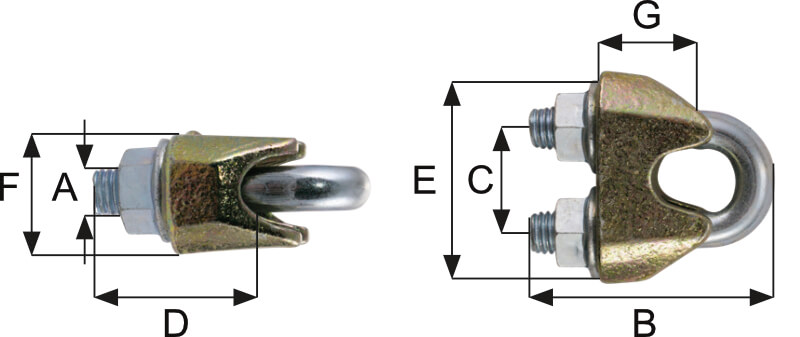

DIAMETE WIRE ROPE [mm]	A [mm]	WIDTH INSIDE C [mm]	LENGTH BOW B [mm]	THREAD D [mm]	BASE E [mm]	THICKNESS BASE F [mm]	HEIGHT BASE G [mm]	WEIGHT 100 PCS [kgs]
4	5	12	24	11	24	21	10	2
5	6	15	31	13	29	24	13	4
7	8	19	34	13	37	30	18	8
8	10	22	45	19	43	33	19	13
10	11	26	49	19	49	42	25	19
11	12	30	60	25	58	46	26	33
13	13	30	61	25	58	48	31	34
15	14	33	72	32	63	52	31	45
16	14	33	74	32	64	54	26	45
20	16	28	86	37	72	57	38	68
22	19	45	98	41	80	62	40	108
26	19	48	108	46	88	67	47	113
30	19	51	117	51	91	73	48	140
34	22	59	130	54	105	79	56	207
36	22	60	140	59	108	79	58	234

DIAMETE WIRE ROPE [mm]	A [mm]	WIDTH INSIDE C [mm]	LENGTH BOW B [mm]	THREAD D [mm]	BASE E [mm]	THICKNESS BASE F [mm]	HEIGHT BASE G [mm]	WEIGHT 100 PCS [kgs]
3	4	9	20	12	21	10	10	1.4
5	5	11	24	13	23	11	10	1.5
6	5	13	28	15	26	12	11	1.6
8	6	16	34	19	30	14	15	4.1
10	8	19	42	22	34	18	17	6
11	8	20	44	22	36	19	18	7
13	10	24	55	30	42	23	21	11.8
14	10	25	57	30	44	23	22	12.4
16	12	29	63	33	50	26	26	21
19	12	32	75	38	54	29	30	23.6
22	14	37	85	44	61	33	34	23.8
26	14	41	95	45	65	35	37	41
30	16	48	110	50	74	37	43	62
34	16	52	120	55	80	42	50	75
