Stainless fittings

BOTTLESCREW JAW TURNBUCKLES WIRE ROPE GRIP LIGHTWEIGHT THIMBLE STANDARD THIMBLE STANDARD DEE SHACKLE COPPER SLEAVE

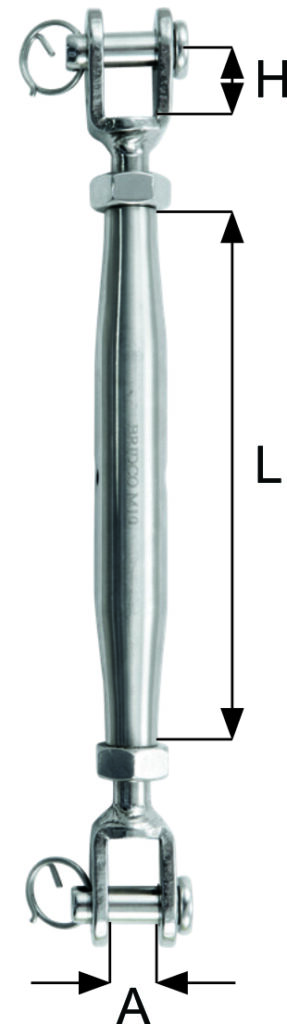

BOttlescrew jaw / jaw lock nuts

blocks and rigging stainless fittings bottlescrew jaw

CODE	DIAMETER [mm]	LENGTH MIN	LENGTH MAX	L	H	A
SSR05JJ	5	125	185	80	11.5	7.5
SSR06JJ	6	140	215	90	12.5	8.3
SSR08JJ	8	135	250	105	15.5	11.8
SSR010JJ	10	200	300	120	17.5	12.5
SSR012JJ	12	245	380	151	28	15
SSR014JJ	14	280	395	165	21	16
SSR016JJ	16	304	440	190	25	17
SSR020JJ	20	390	550	210	28	20
SSR024JJ	24	430	570	252	55	30

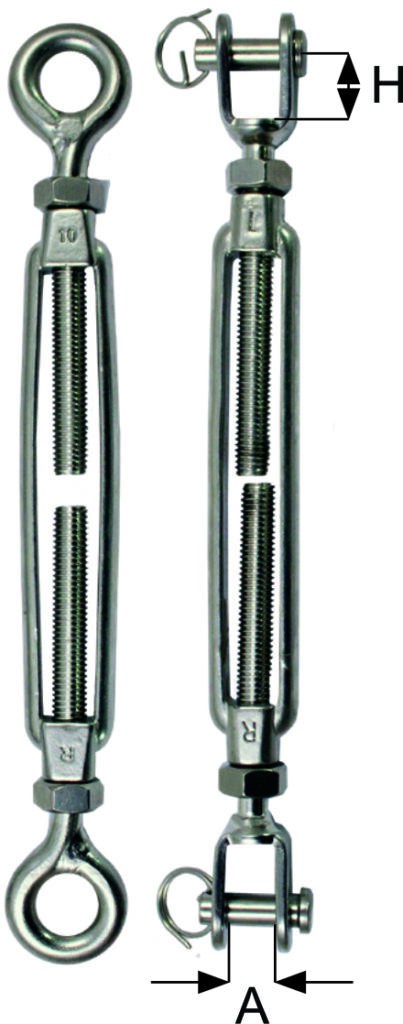

TURNBUCKLES

CODE	DIAMETER [mm]	LENGTH MIN	LENGTH MAX	L	H	A
SSTB04JJ	4	98	135	JAW	8	-
SSTB04EE	4	98	135	EYE	8	-
SSTB05EE	5	120	170	EYE	8	-
SSTB05JJ	5	120	170	JAW	6	10
SSTB06EE	6	150	220	EYE	10	-
SSTB06JJ	6	150	220	JAW	7	9
SSTB08EE	8	200	280	EYE	12	-
SSTB08JJ	8	195	265	JAW	10	10
SSTB012EE	12	135	460	EYE	20	20
SSTB012JJ	12	320	455	JAW	13	13
SSTB014JJ	14	315	445	JAW	16	21
SSTB014EE	14	320	455	EYE	16	21

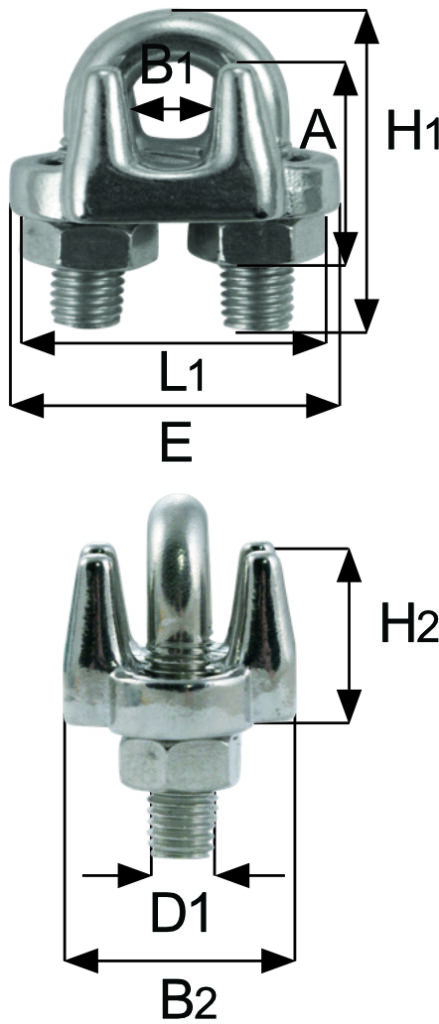

wire rope grip

blocks and rigging stainless fittings wire rope grip

CODE	DIAMETER [mm]	B	B1	B2	D1	H1	H2	L1
SSG02	2	12	4	14	3	18	10	13
SSG03	3	14	5.5	16	3	22	11	16
SSG04	4	16	6	18	4	23	13	18
SSG05	5	19	7	21	5	27	15	21
SSG06	6	22	9	22	5	32	17	27
SSG08	8	27	11	28	8	40	20	34
SSG10	10	32	12	35	10	50	24	45
SSG12	12	37	15	38	12	62	28	50
SSG14	14	40	18	44	13	65	32	52
SSG16	16	47	20	47	13	78	34	59

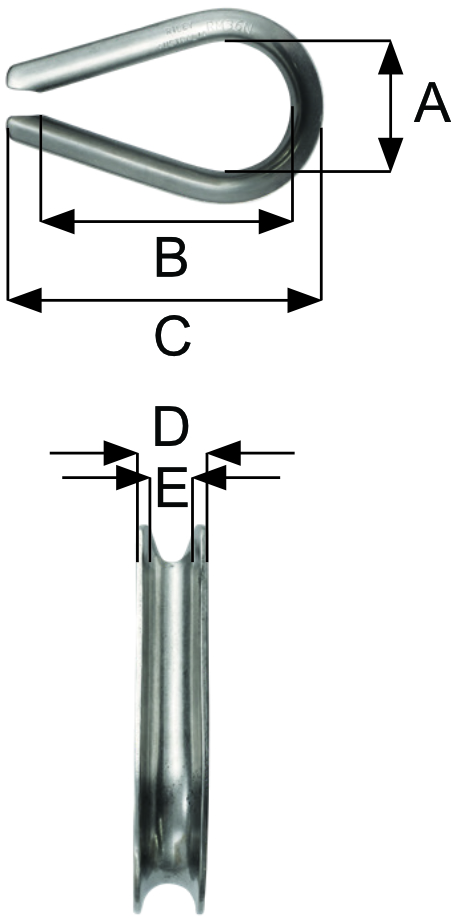

lightweight thimble

blocks and rigging stainless fittings light weight thimble

CODE	DIAMETER [mm]	C	D	A	E	B
THS02L	2	23	5	8	3	16
THS03L	3	25	5.5	10	4.5	18
THS04L	4	27	5.5
THS05L	5	32.5	7	14	6	22
THS06L	6	36	9.5	17	7	27
THS08L	8	50	12	20	9	35
THS010L	10	60	15	25	11	40
THS012L	12	68	18	30	14	47
THS014L	14	71	19	34.5	16	51

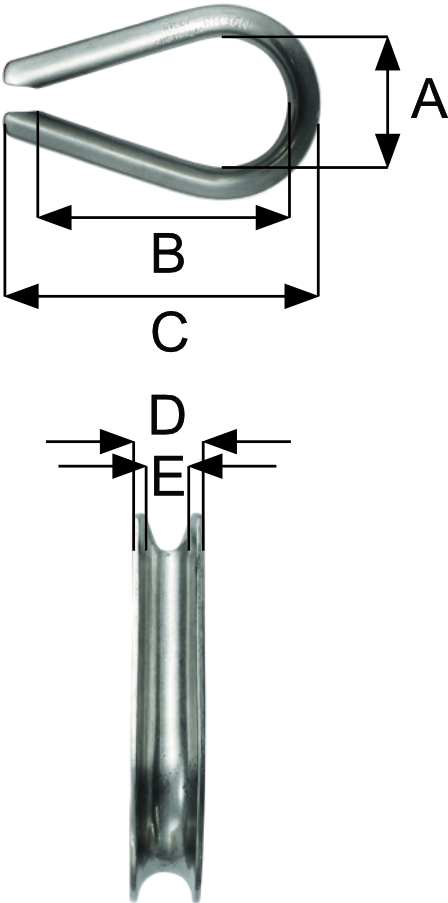

standard tHIMBLE

blocks and rigging stainless fittings standard thimble

CODE	DIAMETER [mm]	C	D	A	E	B
THS02	2	56	10	23.5	7	43
THS03	3	63	12.5	28	9	49
THS04	4	73	15	29	10.5	55
THS05	5	39	9	16	6	31
THS06	6	92	20	38	13	65
THS08	8	106	23.5	45	17	83
THS010	10	125	31	51	23	95
THS012	12	157.5	37.5	65.5	25.4	118

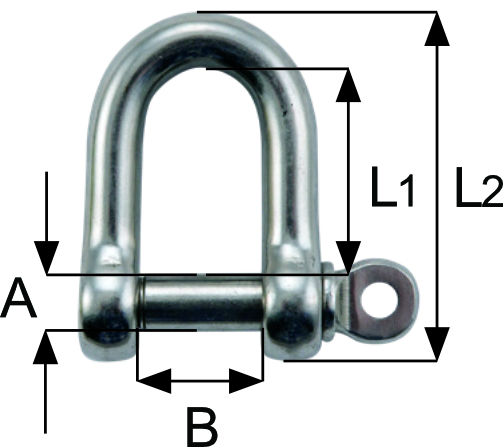

standard dee shackle

blocks and rigging stainless fittings standard dee shackle

CODE	A	B	D	L1	L2
SSD05	4.8	10.8	9.8	18	30
SSDO6	5.8	13.5	12	21	36
SSDO7	6.8	14.5	13.5	24.2	41.3
SSS08	7.6	17.3	15.9	29.7	48.2
SSD08	9.7	22.5	20	35.7	60
SSD12	11.6	27	23.7	43.1	70
SSD16	16	32	31.8	56	95

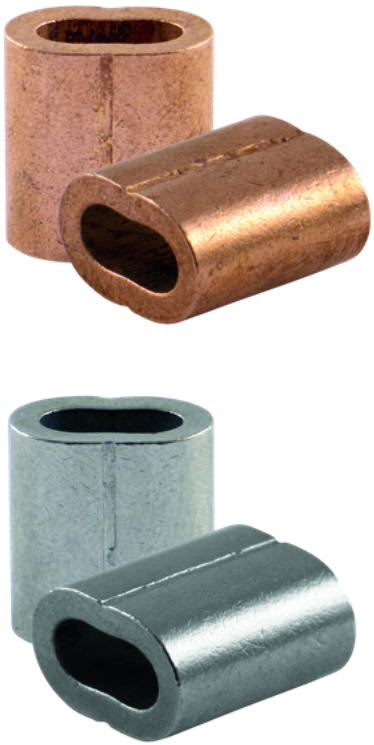

copper sleeve

blocks and rigging stainless fittings standard copper sleeve

CODE	FOR WIRE SIZE [mm]	FOR WIRE SIZE [inch]	BORE 1*	LENGTH BEFORE SWAGING
CS015	1.5	1/16	4.9	8
CS02	2	5/64	4.9	9
CS025	2.5	3/32	6	10
CS03	3	1/8	7.3	13
CS04	4	5/32	9.1	16
CS05	5	3/16	10.9	19
CS06	6	15/64	12.7	20
CS08	8	5/16	17	25
