GENERAL

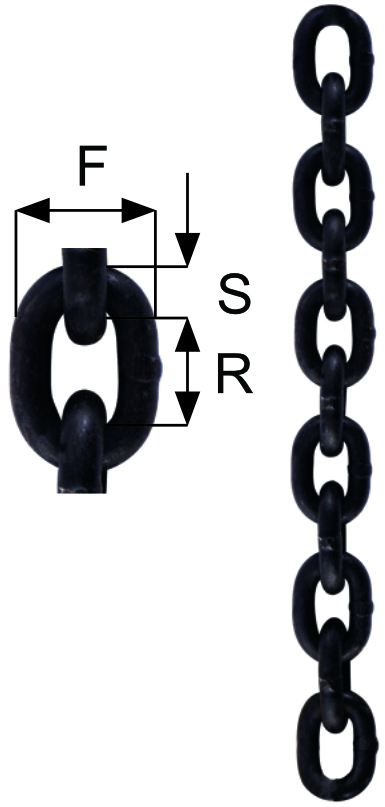

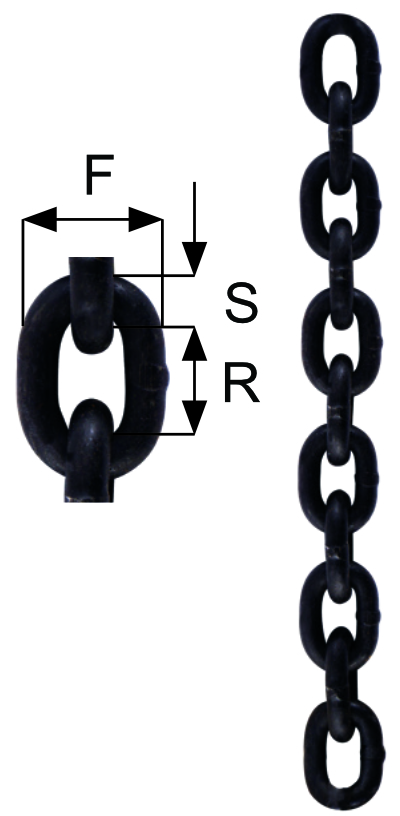

CODE	CHAIN SIZE[mm]	MWL [t] NOT FOR LIFTING	S [mm]	R [mm]	F [mm]	WEIGHT [kg]
CH06MBPC	6	0.32	6	25	24	1.44
CH08MBPC	8	0.53	7.6	35.8	29.2	0.90
CH010MBPC	10	0.86	9.5	43.4	35.5	1.69
CH013MBPC	13	1.5	12	51.7	44.5	2.81
CH016MBPC	16	2.31	16	59.6	57.3	5.26
CH020MBPC	20	3.67	20	73.3	71	8.13
CH024MBPC	24	5.34	24	87	84.8	11.62

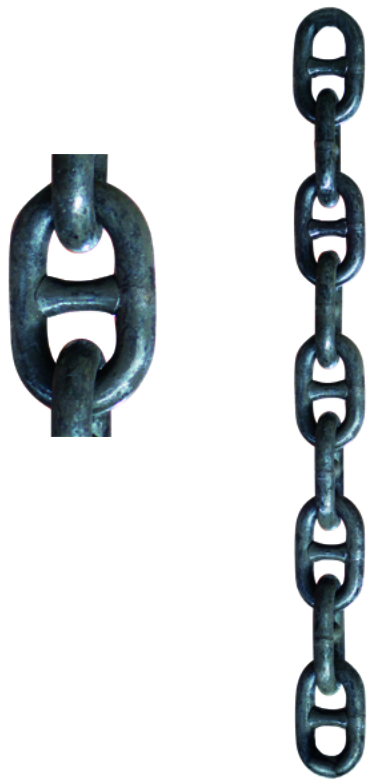

CODE	DIA [mm]	CHAIN SIZE OUTSIDE LENGTH	LINK SIZE OUTSIDE WIDTH	GRADE BREAKING [t]	U1 LOAD[kN]	GRADE BREAKING [t]	U2 LOAD[kN]	GRADE BREAKING [t]	U3 LOAD[kN]	WEIGHT (kg/per shot)
CHSL28	28	168	100.8	32.73	321	45.79	449	65.47	642	496
CHSL32	32	192	115.2	42.52	417	59.45	583	84.94	833	635
CHSL34	34	204	122.4	47.72	468	66.79	655	95.55	937	712
CHSL36	36	216	129.6	53.33	523	74.64	732	107.07	1050	800
CHSL38	38	228	136.8	59.25	581	82.80	812	118.29	1160	887
CHSL40	40	240	144	65.26	640	91.37	896	130.52	1280	1032
CHSL42	42	252	151.2	71.69	703	100.03	981	142.76	1400	1084
CHSL50	50	300	180	100.03	981	139.70	1370	199.86	1960	1546

CODE	CHAIN SIZE [mm]	NOMINAL B.S [kN]	NOMINAL B.S [t]	S[mm]	R[mm]	F[mm]	WEIGHT (kg/per shot)
CH06GL	6	19.61	2	6.3	18.8	21.6	0.91
CH06GL	8	31.38	3.2	8	23.8	27	1.5
CH010GL	10	49.3	5	10	29.8	34.3	2.3
CH013GL	13	83.36	8.5	12.7	38	43	3.6
CH016GL	16	126.51	12.9	16	47.8	54.9	5.7
