Chains and fittings Grade 70

Grade 70 – Lashing Chain

TRANSPORT CHAIN CLEVIS SLIP HOOKS CLEVIS CLAW HOOKS CLEVIS LUG HOOKS GRAB HOOK LEVER LOAD BINDERS RECOILLESS LEVER LOAD BINDERS RATCHET LOAD BINDERS TIE DOWNS

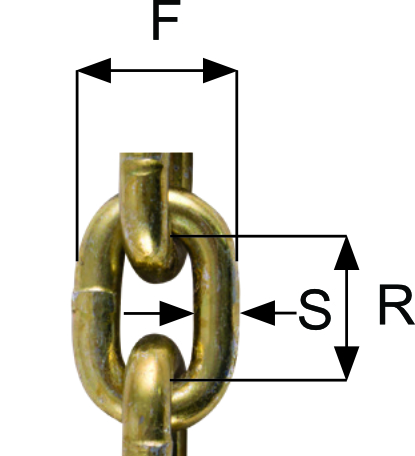

transport chain

CODE	LASHING CAPACITY [t]	CHAIN SIZE [mm]	S [mm]	R [mm]	F [mm]	WEIGHT [kg]
G7CH06	2.6	6	6	18.5	20	0.8
G7CH073	3	7.3	7.3	22	24	1.1
G7CH08	3.8	8	8	24	30	1.43
G7CH10	6	10	10	30	35	2.23
G7CH13	9	13	13	39	45.5	3.75

transport chain

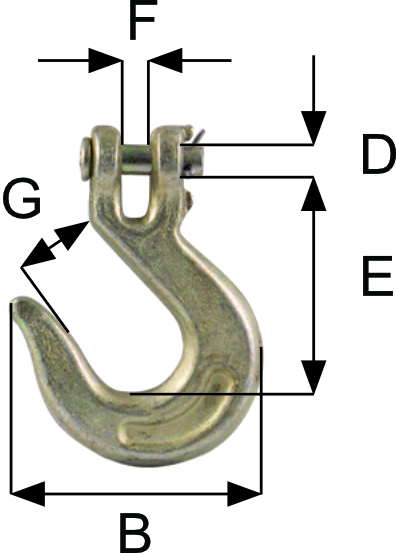

CLEVIS SLIP HOOKS

CODE	LASHING CAPACITY [t]	CHAIN SIZE [mm]	F [mm]	D [mm]	E [mm]	B [mm]	G [mm]	WEIGHT [kg]
G7CSH06	2.3	6	9	7.8	63	69	19	0.22
G7CSH08	3.8	7-8	11	9.5	69	80	26	0.36
G7CSH010	6	10	12	12	79.5	90	33	0.6
G7CSH013	9	13	19	16.3	102	121.5	43	1.19

clevis slip hooks

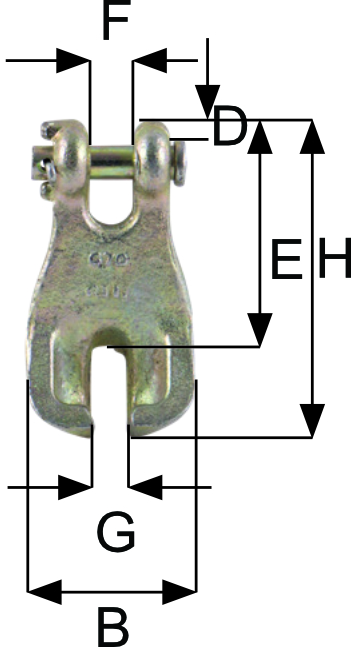

clevis claw hooks

CODE	LASHING CAPACITY [t]	CHAIN SIZE [mm]	F [mm]	D [mm]	E [mm]	H [mm]	G [mm]	B [mm]	WEIGHT [kg]
G7CCH010	6	10	12.5	12.5	46	103	11.5	55	0.59

clevis claw hooks

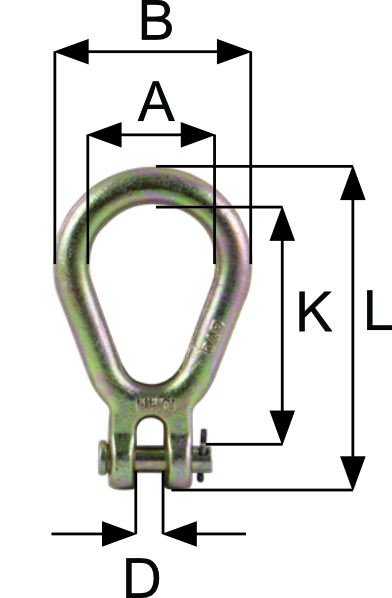

clevis LUG LINKS

CODE	LASHING CAPACITY[t]	CHAIN SIZE [mm]	B [mm]	A [mm]	D [mm]	K [mm]	L [mm]	WEIGHT [kg]
G7CLL08	3.8	7-8	35	12	86	108	142	0.5
G7CLL10	6	10	36	16.5	95	119	156	0.6
G7CLL13	9	13	48.5	18	100	132	175	1.5

clevis lug links

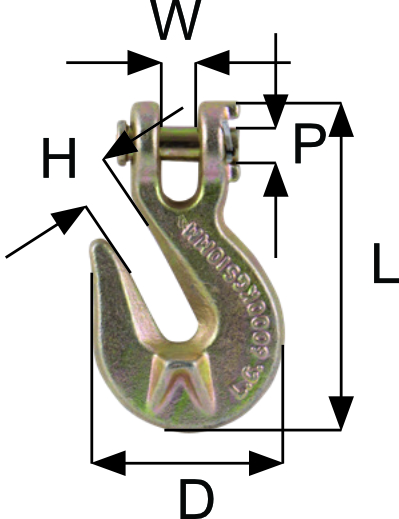

Grab hook

CODE	LASHING CAPCITY [t]	CHAIN SIZE [mm]	D [mm]	H [mm]	L [mm]	P [mm]	R [mm]	W [mm]	WEIGHT [kg]
G7CGH06	2.3	6	48.8	8.9	81	7.9	45.5	8.9	0.21
G7CGH08	3.8	8	57.9	10.9	95	9.9	54.1	9.9	0.34
G7CGH010	6	10	67.6	13	115	11.9	67.6	11.9	0.71
G7CGH013	9	13	76.2	16	135	16	77	15	1.25

grab hook

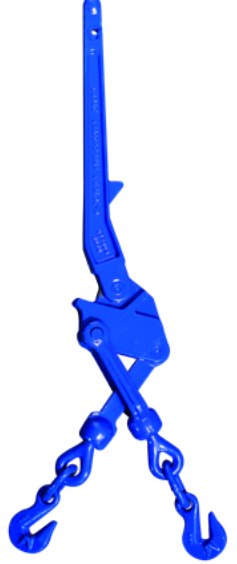

Lever load binders

CODE	LASHING CAPCITY [t]	CHAIN SIZE [mm]	WEIGHT [kg]
G7LLB06	2.3	6	1.68
G7LLB08	3.8	8	4.2
G7LLB010	6	10	6.5
G7LLB13	9	13	9.35

lever load binders

RecoilLess Lever load binders

CODE	LASHING CAPCITY [t]	CHAIN SIZE [mm]	WEIGHT [kg]
G7LBLR06	2.3	6	1.68
G7LBLR08	3.8	7.3 & 8	4.2
G7LBLR08	6	10	6.5

lever load binders

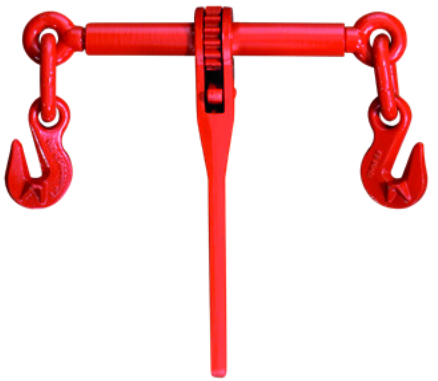

ratchet load binders

CODE	LASHING CAPCITY [t]	CHAIN SIZE [mm]	WEIGHT [kg]
G7RLB06	2.3	6	1.69
G7RLB08	3.8	8	4.9
G7RLB10	6	10	5.4
G7RLB13	9	13	7.5

lever load binders

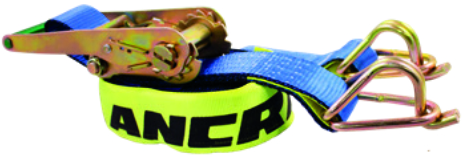

tie downs

CODE	LASHING CAPCITY [t]	WEBBING [mm]	WEIGHT [kg]
TD0755	0.75	25	5
TD105	1	35	5
TD156	1.5	35	6
TD259	2.5	50	9
TD309	3	50	9
TD509	5	75	9

tie downs
