Chains and fittings Grade 80

Grade 80

SHORT LINK LIFTING CHAIN CLEVIS SLING HOOK WITH LATCH CLEVIS CRADLE GRAB HOOK CONTAINER HOOK HALF COUPLING LINK ASSEMBLY ROUND SLING COUPLING WELD ON BUCKET HOOK WELD ON LIFTING POINT U-LOC CLEVIS FOREST HOOK

short link lifting chain

CODE	WLL (t)	CHAIN SIZE [mm]	S [mm]	R [mm]	F [mm]	MPF [kN]	BREAKING FORCE [kN]	WEIGHT (kg)
G8CH07	1.57	7	7	21	10	38.5	62	1.14
G8CH08	2	8	8	24	11	50.3	80.6	1.41
G8CH010	3.2	10	10	30	14	79	130	2.25
G8CH013	5.4	13	13	39	17.7	133	214	3.76
G8CH016	8.2	16	16	48	21.9	201	322	5.64
G8CH019	11.6	19	19	57	27	284	457	7.78
G8CH020	12.5	20	20	59.2	27.5	302	490	8.78
G8CH022	15.5	22	22	66	29.5	380	610	10.64
G8CH026	21.6	26	26	78	35	531	850	14.8
G8CH032	32.8	32	32	96	41.6	804	1300	21.6

short link lifting chain

CLEVIS sling hook with latch

CODE	WLL (t)	Chain Size [mm]	A [mm]	L [mm]	P1 [mm]	T [mm]	H [mm]	WEIGHT (kg)
G8CSH08	2	7 & 8	9	98	27	17	22	0.504
G8CSH10	3.15	10	11	121	36	20	29	0.984
G8CSH13	5.3	13	14	147	42	27	36	2.04
G8CSH16	8	16	18	170	52	34	44	3.52
G8CSH20	12.5	20	21	200	56	47	50	6.5

clevis sling hook with latch

clevis grab hook

CODE	WLL (t)	Chain Size [mm]	A [mm]	P [mm]	L [mm]	H [mm]	WEIGHT (kg)
G8CGH06	1.1	6	7	7	41	16	0.2
G8CGH08	2	8	9	10	55	25	0.3
G8CGH10	3.15	10	12	13	77	35	0.8
G8CGH13	5.3	13	15	16	97	42	1.6
G8CGH16	8	16	17	20	102	45	2.8
G8CGH20	12.5	20	23	23	124	54	4.8

clevis cradle grab hook

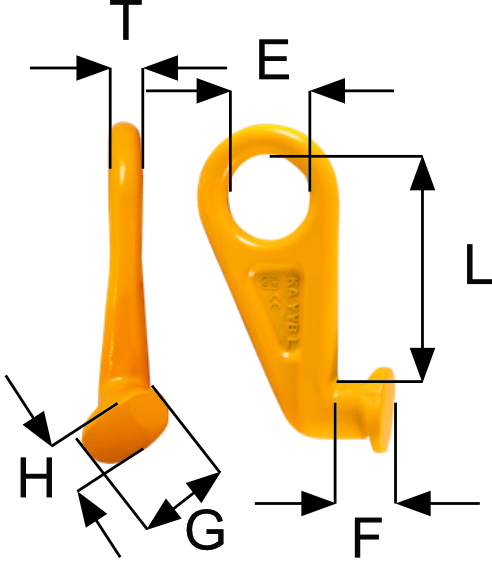

container hook

CODE	LUG ANGLE	WLL (t)	L [mm]	E [mm]	F [mm]	T [mm]	G [mm]	H [mm]	WEIGHT (kg)
G8ECHL	Left 45°	12.5	192	70	45	25	75	48	3.9
G8EGHR	Right 45°	12.5	192	70	45	25	75	48	3.9
G8EGHS	Straight	12.5	192	70	45	25	75	48	3.9

container hook

Half coupling link assembly

CODE	WLL (t)	CHAIN SIZE [mm]	L [mm]	B [mm]	A [mm]	C [mm]	WEIGHT (kg)
G8HCL08	2	8	28	18	9	22	0.1
G8HCL10	3.15	10	34	25	11	26	0.2
G8HCL13	5.3	13	45	30	16	35	0.4
G8HCL16	8	16	50	36	19	38	0.6

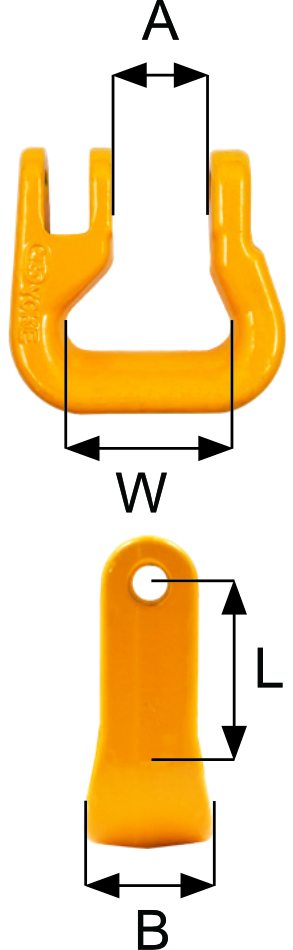

round sling coupling

CODE	WLL (t)	L [mm]	W [mm]	A [mm]	B [mm]	WEIGHT (kg)
G8RSC08	2	33	40	18	24	0.2
G8RSC10	3.15	42	47	25	29	0.4
G8RSC13	5.3	51	53	30	35	0.7
G8RSC16	8	63	67	36	44	1.3

round sling coupling

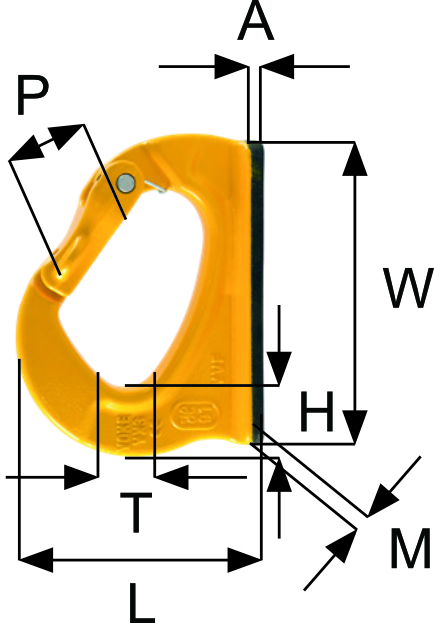

weld on bucket hook

CODE	WLL (t)	P [mm]	L [mm]	T [mm]	H [mm]	W [mm]	A [mm]	WEIGHT (kg)
G8WOBH0075	0.75	20	56	13	20	81.5	5	0.264
G8WOBH01	1	27	72	17	25	95	6	0.55
G8WOBH02	2	33	86	20	30	114	8	0.922
G8WOBH03	3	30	105	23	32	132	10	1.415
G8WOBH04	4	30	114	29	38	140	11	1.94
G8WOBH05	5	34	131	30	47	165	12	2.858
G8WOBH08	8	34	133	40	51	172	13	3.482
G8WOBH10	10	47	170	43	58	220	14	6.347
G8WOBH15	15	55	188	50	67	240	15	8.826
G8WOBH20	20	65	207	60	85	275	15	12.38

weld on bucket hook

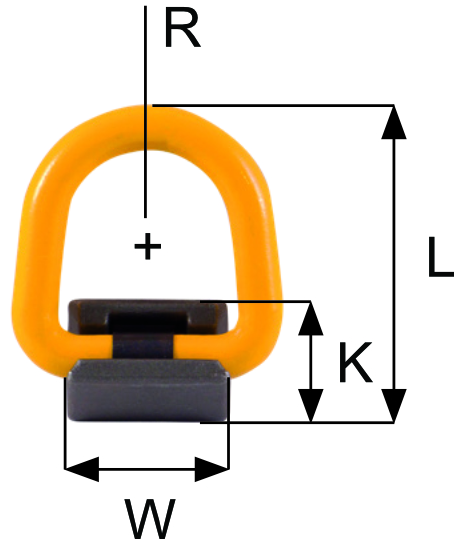

weld on lifting point

CODE	WLL (t)	W [mm]	K [mm]	R [mm]	L [mm]	WEIGHT (kg)
G8W0LP01	1	50	38	24	105	0.5
G8W0LP02	3	58	48	29	112	0.8
G8W0LP05	5	64	61	33	154	1.8
G8W0LP08	8	61	73	34	169	2.6
G8W0LP10	10	75	73	41	191	3.1
G8W0LP20	15/20	91	93	50	234	6.5

weld on lifting point

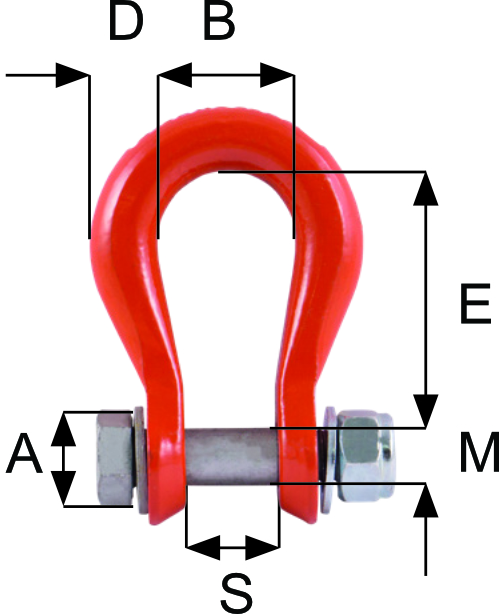

U-LOc

CODE	LOAD CAPACITY [t]	CHAIN SIZE [mm]	E [mm]	B [mm]	D [mm]	S [mm]	A [mm]	M [mm]	WEIGHT (kg)
G8UL06	1.12	6	34	21	9	11	16	7	0.077
G8UL08	2	8	48	28	13	16	22	10	0.22
G8UL10	3.15	10	60	35	16	20	27	12	0.41
G8UL13	5.3	13	72	39	18	24	34	16	0.65

U-Loc

Clevis forest hook

Not for lifting

CODE	WILL[t]	CHAIN SIZE [mm]	K [mm]	P [mm]	T [mm]	A [mm]	C [mm]	WEIGHT (kg)
G8CHOKE08	2	8	58	10	18	9	32	0.5
G8CHOKE10	3.2	10	82	12	21	13	45	0.9

clevis forest hook
