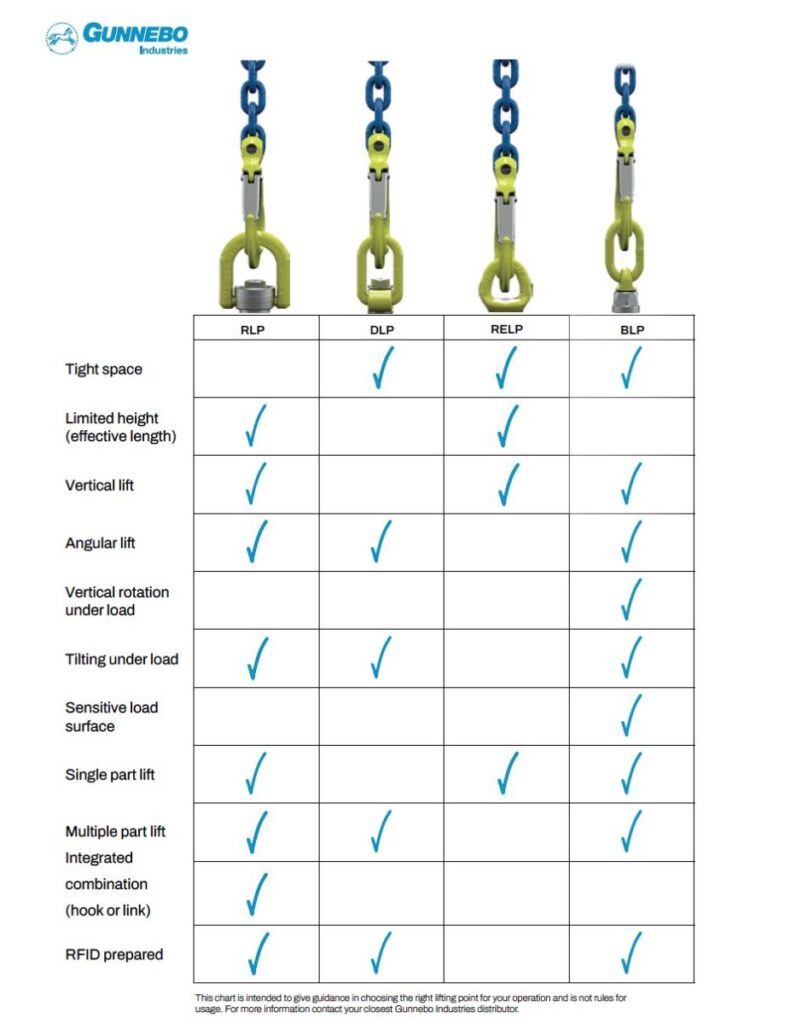

Lifting Points

GUNNEBO RELP GUNNEBO RLP GUNNEBO DLP GUNNEBO BLP GUNNEBO D GUNNEBO WLP GUNNEBO SLP GUNNEBO UKN RUD Swivel Eye Bolt RUD Swivel Eye Nut TDF Swivel Eye Nut

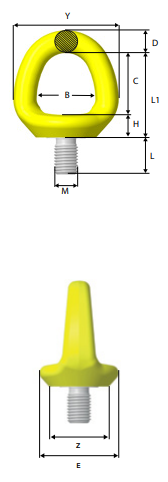

Rotating Eye Lifting Point – RELP

The RELP is a compact and robust lifting point, ideal for top-mounting and when it is important to have quick and easy on-hooking. The lifting point is easy to assemble/disassemble with a standard allen key. On the bolt itself, information such as the working load limit, mounting torque, and manufacturing ID is stamped, so it is always available for the operator.
The RELP will automatically adjust to the loading direction which decreases the risk to load it incorrectly and endangering the lifting operation. For sensitive load surfaces the RELP is ideal, as the connecting sling hook will be positioned mainly parallel to the load surface, thus completely avoiding the hook causing damage on impact on the load.

CODE	M [mm]	L1 [mm]	L [mm]	B [mm]	C [mm]	D [mm]	E [mm]	Y [mm]	Z [mm]	WEIGHT [kg]
G10RELPM08G	8	42	15	28	28	11	40	50	29	0.2
G10RELPM10G	10	42	15	28	28	11	40	50	29	0.2
G10RELPM12G	12	47	20	32	33	13	46	58	38	0.3
G10RELPM16G	16	57	24	39	41	15	53	70	40	0.5
G10RELPM20G	20	60	30	42	43	16	60	78	46	0.7
G10RELPM24G	24	71	36	50	51	19	68	88	44	1.1
G10RELPM30G	30	90	45	60	62	26	85	112	64	2.4
G10RELPM36G	36	104	54	72	72	32	97	136	74	4.1
G10RELPM42G	42	119	63	82	82	38	120	158	91	6.7
G10RELPM48G	48	135	72	94	96	43	142	180	102	9.9

No. of Legs	1	1	2	2	2 Symmetric		3 & 4 Symmetric		Tightening
ANGLE a	0°	90°	0°	90°	0°- 90°	90°- 120°	0°- 90°	90°- 120°	Torque
SYMMETRIC LOAD (tonnes)
G10RELPM08G	0.7	0.3	1.4	0.7	0.4	0.3	0.6	0.4	10Nm
G10RELPM10G	1.2	0.5	2.4	1.0	0.7	0.5	1.0	0.7	15Nm
G10RELPM12G	2.0	0.8	4.0	1.6	1.1	0.8	1.6	1.2	27Nm
G10RELPM16G	3.5	1.5	7.0	3.0	2.1	1.5	3.1	2.2	60Nm
G10RELPM20G	6.1	2.4	12.2	4.8	3.3	2.4	5.0	3.6	90Nm
G10RELPM24G	8.1	3.3	16.2	6.6	4.6	3.3	6.9	4.9	135Nm
G10RELPM30G	12.1	4.6	24.2	9.2	6.4	4.6	9.6	6.9	270Nm
G10RELPM36G	16.1	7.1	32.2	14.2	9.9	7.1	14.9	10.6	320Nm
G10RELPM42G	24.0	9.1	48.0	18.2	12.7	9.1	19.1	13.6	600Nm
G10RELPM48G	32.0	12.1	64.0	24.2	16.9	12.1	25.4	18.1	800Nm

Rotating Lifting Point – RLP

The RLP has an easily dismountable D-ring to enable assembly of wire sling, master link, or hook directly onto the lifting point.
RLP has a hexagon bolt (RFID prepared) to make it easy to disassemble/assemble with a wrench. The bolt is also clearly marked with information such as working load limit, mounting torque, and manufacturer ID. The RLP rotates 360° and pivots 180°, making it strong, flexible, and reliable.

CODE	M [mm]	L1 [mm]	L [mm]	L2* [mm]	B [mm]	C [mm]	D [mm]	X [mm]	Y [mm]	Z [mm]	WEIGHT [kg]
G10RLPM08G	M8 x 1.25	62	16	101	42	35	12	27	64	Ø40	0.3
G10RLPM10G	M10 x 1.5	62	16	101	42	35	12	27	64	Ø40	0.3
G10RLPM12G	M12 x 1.75	88	25	120	57	46	19	42	91	Ø54	1
G10RLPM16G	M16 x 2	88	25	160	57	46	19	42	91	Ø54	1
G10RLPM20G	M20 x 2.5	110	36	200	83	55	28	55	133	Ø80	2.9
G10RLPM24G	M24 x 3	110	36	240	83	55	28	55	133	Ø80	2.9
G10RLPM30G	M30 x 3.5	148	58	300	114	70	34	78	182	Ø111	7.1
G10RLPM36G	M36 x 4	148	58	300	114	70	34	78	182	Ø111	7.3
G10RLPM42G	M42 x 4.5	190	81	301	149	91	40	99	229	Ø142	14.3
G10RLPM48G	M48 x 5	190	81	301	149	91	40	99	229	Ø142	14.5
* comes with short bolt as standard, long bolts sold separately.

No. of Legs	1	1	2	2	2 Symmetric		3 & 4 Symmetric		Tightening
ANGLE a	0°	90°	0°	90°	0°- 90°	90°- 120°	0°- 90°	90°- 120°	Torque
SYMMETRIC LOAD (tonnes)
G10RLPM08G	0.8	0.4	1.6	0.8	0.5	0.4	0.8	0.6	10Nm
G10RLPM10G	1.2	0.7	2.4	1.4	0.9	0.7	1.4	1.0	15Nm
G10RLPM12G	2.0	1.2	4.0	2.4	1.6	1.2	2.5	1.8	27Nm
G10RLPM16G	3.2	2.0	6.4	4.0	2.8	2.0	4.2	3.0	60Nm
G10RLPM20G	5.6	2.8	11.2	5.6	3.9	2.8	5.8	4.2	90Nm
G10RLPM24G	8.0	4.6	16.0	9.2	6.4	4.6	9.6	6.9	135Nm
G10RLPM30G	12.0	6.0	24.0	12.0	8.4	6.0	12.6	9.0	270Nm
G10RLPM36G	14.0	8.0	28.0	16.0	11.2	8.0	16.8	12.0	320Nm
G10RLPM42G	16.0	14.0	32.0	28.0	19.6	14.0	29.4	21.0	600Nm
G10RLPM48G	20.0	16.0	40.0	32.0	22.4	16.0	33.6	24.0	800Nm

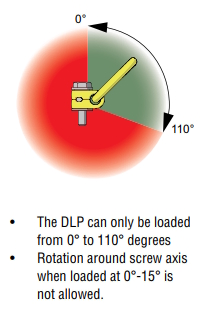

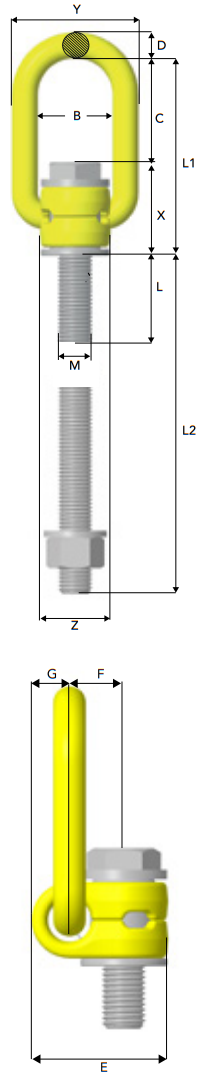

De-centered Lifting Point – DLP

The DLP is designed to be folded over the housing when idle, allowing the lifting point to be almost completely stowed away when not in use.
The closed, oblong link is also equipped with a ‘stay-up’ function for easy on-hooking (for sizes up to M24), especially when there is limited space. This help prevents damage to the load due to impacts from the hook, as well as makes rigging fast and easy. The DLP is ideal in narrow spaces, such as corners or edge position, because the housing has a compact design.
DLP has a hexagon bolt (RFID prepared) to make it easy to disassemble/assemble with a wrench.
The bolt is also clearly marked with information such as working load limit, mounting torque, and manufacturer ID so it is always available to the operator.

CODE	M [mm]	L1 [mm]	L [mm]	B [mm]	C [mm]	D [mm]	E [mm]	F [mm]	G [mm]	X [mm]	Y [mm]	Z [mm]	WEIGHT [kg]
G10DLPM08G	M8 x 1.25	78	16	35	48	10	39	14	10	30	55	26	0.3
G10DLPM10G	M10 x 1.5	78	16	35	48	10	39	14	10	30	55	26	0.3
G10DLPM12G	M12 x 1.75	91	25	35	48	12	51	20	14	44	59	32	0.5
G10DLPM16G	M16 x 2	91	25	35	48	12	51	20	14	44	59	32	0.5
G10DLPM20G	M20 x 2.5	145	36	54	88	18	71	28	18	58	90	48	1.6
G10DLPM24G	M24 x 3	145	36	54	88	18	71	28	18	58	90	48	1.7
G10DLPM30G	M30 x 3.5	182	58	82	94	26	104	39	27	88	122	75	5
G10DLPM36G	M36 x 4	182	58	82	94	26	104	39	27	88	122	75	5.2
G10DLPM42G	M42 x 4.5	216	81	100	104	36	136	54	34	113	156	110	11.6
G10DLPM48G	M48 x 5	216	81	100	103	36	136	54	34	113	156	110	11.9
G10DLPML08G	M8 x 1.25	78	97.5	35	48	10	39	14	10	30	55	26
G10DLPML10G	M10 x 1.5	78	97.5	35	48	10	39	14	10	30	55	26
G10DLPML12G	M12 x 1.75	91	118	35	48	12	51	20	14	44	59	32
G10DLPML16G	M16 x 2	91	158	35	48	12	51	20	14	44	59	32
G10DLPML20G	M20 x 2.5	145	198	54	88	18	71	28	18	58	90	48
G10DLPML24G	M24 x 3	145	238	54	88	18	71	28	18	58	90	48
G10DLPML36G	M30 x 3.5	182	295	82	94	26	104	39	27	88	122	75

No. of Legs	1	2	2 Symmetric		3 & 4 Symmetric		Tightening
ANGLE α	0° < α < 90°	0° < α < 90°	0 - 90°	90°- 120°	0 - 90°	90°- 120°	Torque
SYMMETRIC LOAD (tonnes)
G10DLPM08G	0.35	0.70	0.5	0.35	0.7	0.5	10Nm
G10DLPM10G	0.65	1.3	0.9	0.65	1.4	1.0	15Nm
G10DLPM12G	1.0	2.0	1.4	1.0	2.1	1.5	27Nm
G10DLPM16G	1.8	3.6	2.5	1.8	3.7	2.7	60Nm
G10DLPM20G	2.6	5.2	3.6	2.6	5.4	3.9	90Nm
G10DLPM24G	4.1	8.2	5.7	4.1	8.6	6.1	135Nm
G10DLPM30G	5.0	10.0	7.0	5.0	10.5	7.5	270Nm
G10DLPM36G	7.0	14.0	9.8	7.0	14.7	10.5	320Nm
G10DLPM42G	15.0	30.0	21.0	15.0	31.5	22.5	600Nm
G10DLPM48G	20.0	40.0	28.0	20.0	42.0	30.0	800Nm

Ball-bearing Lifting Point – BLP

The BLP is a versatile lifting point and can be safely used for most applications. The ball-bearings in the BLP allow the load to be rotated during the lift, which is especially good when maintenance is needed on heavy tools and other types of equipment.
If the load surface is sensitive to impacts or scratches, the BLP is a good choice because it builds out from the load, which makes it less likely that the lifting equipment will come in contact and cause damage. The housing (RFID prepared) of the BLP is in-house drop-forged for increased strength and has a hexagon shape for easy mounting and dismounting. The housing is also clearly marked with information such as working load limit, mounting torque, and manufacturer ID so it is always available to the operator

CODE	M [mm]	L1 [mm]	L [mm]	B [mm]	C [mm]	D [mm]	X [mm]	Y [mm]	Z [mm]	WEIGHT [kg]
G10BLPM08G	M8 x 1.25	112	16	35	55	13	57	62	42	0.6
G10BLPM10G	M10 x 1.5	112	20	35	55	13	57	61	42	0.6
G10BLPM12G	M12 x 1.75	112	24	35	55	13	57	61	42	0.6
G10BLPM16G	M16 x 2	112	30	35	55	13	57	61	42	0.6
G10BLPM20G	M20 x 2.5	126	30	34	51	17	75	67	59	1.3
G10BLPM24G	M24 x 3	145	36	50	70	17	75	84	59	1.5
G10BLPM30G	M30 x 3.5	102	45	54	96	22	106	99	74	3.4
G10BLPM36G	M36 x 4	102	54	54	96	22	106	99	74	3.5
G10BLPM42G	M42 x 4.5	242	63	70	120	28	122	127	93	6.5
G10BLPM48G	M48 x 5	242	72	70	120	28	122	127	93	6.8

No. of Legs	1	1	2	2	2	2 Symmetric		3 & 4 Symmetric		Tightening
ANGLE a	0°	90°	0°	0°- 45°	90°	0°- 90°	90°- 120°	0°- 90°	90°- 120°	Torque
SYMMETRIC LOAD (tonnes)
G10BLPM08G	0.6	0.3	1.2	0.4	0.6	0.4	0.3	0.6	0.45	10Nm
G10BLPM10G	1.0	0.5	2.0	0.7	1.0	0.7	0.5	1.3	0.75	15Nm
G10BLPM12G	1.5	0.75	3.0	1.1	1.5	1.1	0.75	1.5	1.1	27Nm
G10BLPM16G	3.0	1.5	6.0	2.1	3.0	2.1	1.5	3.1	2.2	60Nm
G10BLPM20G	5.0	2.5	10.0	3.5	5.0	3.5	2.5	5.2	3.7	90Nm
G10BLPM24G	7.0	4.0	14.0	5.6	8.0	5.6	4.0	8.4	6.0	135Nm
G10BLPM30G	12.0	6.0	24.0	8.4	12.0	8.4	6.0	12.6	9.0	270Nm
G10BLPM36G	14.0	8.0	28.0	11.2	16.0	11.2	8.0	16.8	12.0	320Nm
G10BLPM42G	16.0	10.0	32.0	14.0	20.0	14.0	10.0	21.0	15.0	600Nm
G10BLPM48G	18.0	13.0	36.0	18.2	26.0	18.2	13.0	27.3	19.5	800Nm

MASTER LINK D – D

	WLL [t}	E [mm]	D [mm]	L [mm]	R [mm]	WEIGHT [kg]
D-14-10	2.5	55	14	65	24	0.4
D-17-10	4.0	64	17	62	29	0.5
D-22-10	7.0	76	22	90	33	1.0
D-27-10	10.0	85	27	98	38	1.9
D-32-10	16.0	114	32	139	50	3.5

4:1 Design Factor

The load bearing width must be at least 0.5 x E

WELDABLE LIFTING POINT – WLP

CODE		WLL [t]	B [mm]	G [mm]	L [mm]	X [mm]	WEIGHT [kg]
G10WOLP025G	WLP-2.5T	2.5	50	27	53	95	0.5
G10WOLP04G	WLP-4T	4.0	58	34	48	97	0.5
G10WOLP07G	WLP-7T	7.0	64	41	73	135	1.8
G10WOLP10G	WLP-10T	10.0	65	52	73	152	3.4
G10WOLP16G	WLP-16T	16.0	90	66	105	203	6.7

4:1 Design Factor

Supplied with bolt and spring for stay up function.

Master Link measurements , see Master Link D above.

Screw-on LIFTING POINT – sLP

	WLL [t]	B [mm]	C [mm]	H [mm]	L [mm]	M [mm]	[mm]	BOLT PROTRUSION	WEIGHT [kg]
SLP-1T	1.0	50	72	98	54	M14	139	25	0.8
SLP-3.0	3.0	58	84	114	49	M16	144	28	1.3
SLP-5T	5.0	64	116	160	71	M20	203	34	2.6

4:1 Design Factor
Supplied with bolt and spring for stay up function.
Master link measurements, see Master Link D above.

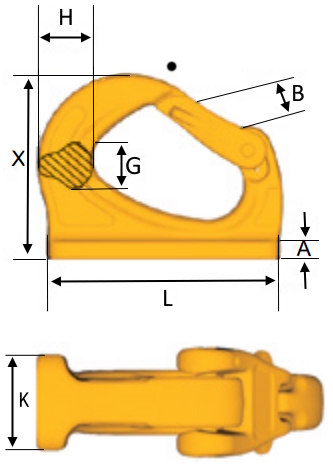

UNIVERSAL WELD-On Hook – UKN

CODE		B [mm]	G [mm]	H [mm]	K [mm]	WLL [t]	L [mm]	A [mm]	X [mm]	WEIGHT [kg]
G8WOBH0075G	UKN-0.75*	20	13	20	19	.75	81.5	5	56	0.2
G8WOBH01G	UKN-1*	27	17	25	25	1.0	95	6	72	0.6
G8WOBH02G	UKN-2*	33	20	30	30	2.0	114	8	86	0.9
G8WOBH03G	UKN-3	30	23	32	35	3.0	132	10	105	1.3
G8WOBH04G	UKN-4	30	29	38	42	4.0	140	11	114	2.0
G8WOBH05G	UKN-5	34	30	47	45	5.0	165	12	131	3.2
G8WOBH08G	UKN-8	34	40	51	50	8.0	172	13	133	3.6
G8WOBH10G	UKN-10	47	43	58	55	10.0	220	14	170	8.2
G8WOBH15G	UKN-15	55	50	67	60	15.0	240	15	188	9.8
G8WOBH20G	UKN-20	65	60	85	60	20.0	275	15	207	12.4

Welding plate slightly curved ** Safety factor 5:1 Fulfills requirements in: EN 474-1

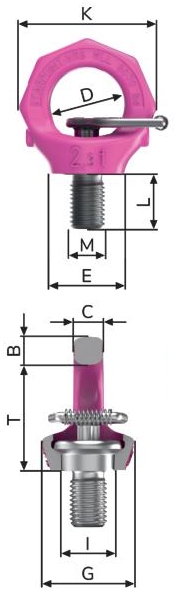

starpoint – VRS-f

Non-detachable ICE-Bolt made of patent steel (M6–M24), thus reducing the risk of using unsuitable standard bolts. Special bolt for safe deep temperature usage with higher toughness and thus higher bending strength as well as less wear.

The WLL information corresponds with the min. WLL (worst case scenario) in all loading directions. Higher WLL by optimised attachment or application.

CODE	WLL [t]	M [mm]	T [mm]	L [mm]	B [mm]	C [mm]	D [mm]	E [mm]	G [mm]	K [mm]	WEIGHT [kg]
G10EBM06RUD	0.1	6	28	9	9	7	20	23	28	37	0.07
G10EBM10RUD	0.4	10	35	15	11	9	25	25	30	47	0.12
G10EBM12RUD	0.75	12	42	18	13	10	30	30	34	56	0.21
G10EBM16RUD	1.5	16	49	24	15	13	35	36	40	65	0.36

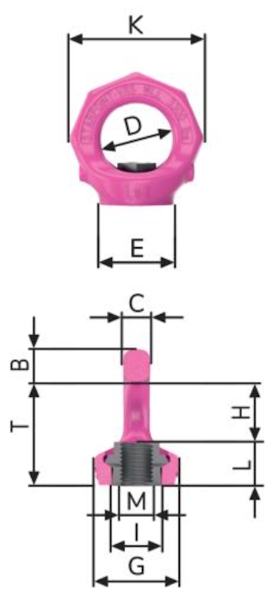

starpoint – VRM

The WLL information corresponds with the min. WLL (worst case scenario) in all loading directions. Higher WLL by optimised attachment or application.

CODE	WLL [t]	M [mm]	T [mm]	L [mm]	B [mm]	C [mm]	D [mm]	E [mm]	G [mm]	K [mm]	WEIGHT [kg]
G10ENM12RUD	0.75	12	42	17	13	10	30	30	34	56	0.18
G10ENM16RUD	1.5	16	49	21	15	13	35	36	40	65	.32

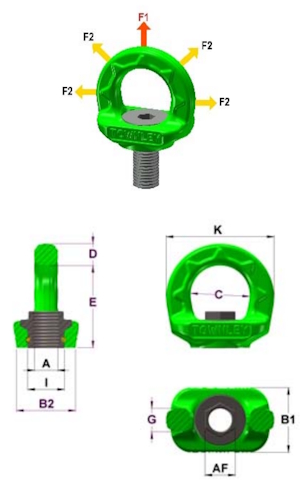

Townley Swivel Eye Nut

Forged from high tensile alloy steel
Tempered
100% electromagnetic crack testing to AS1171
Hi-visibility powder coating to AS4506
Manufactured exclusively from Australian Made Steel

CODE	Metric	WLL F1 [t]	WLL F2 [t]	A [mm)	B2 [mm]	C [mm]	D [mm]	E [mm]	G [mm]	I [mm]	K [mm]	L [mm]	N [mm]	Torque [Nm]	AF [mm]	Weight [kg]
G10ENM20TDF	M20	6.0	2.3	48	42	39	16	56	16	28	69	30	12	105	24	0.6
G10ENM24TDF	M24	8.0	3.2	56	50	50	19	71	19	33	86	36	14	182	27	1.1
