Logging Blocks
Tail and Scabbing Blocks

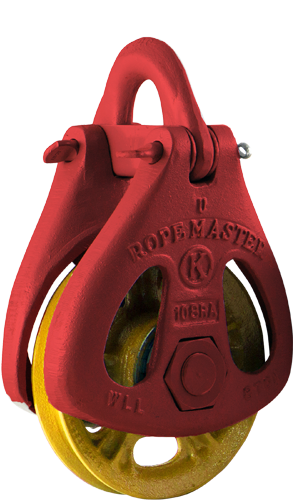

108RA
Rope size 1/2-5 /8″
Sheave size 12×1 3/4
Safe working load 7.257kg
Weight 21.3
Application Tail
Sheave size 12×1 3/4
Safe working load 7.257kg
Weight 21.3
Application Tail

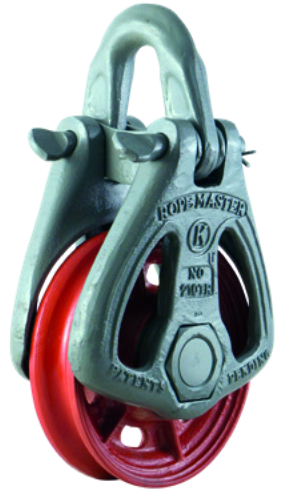

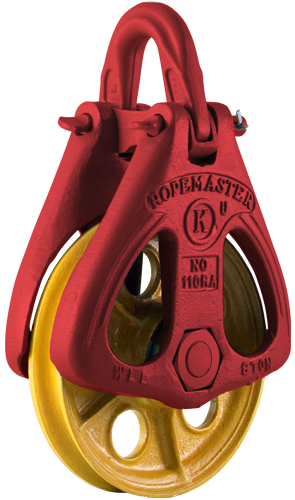

110RA
Rope size 1/2-5 /8″
Sheave size 10×1 3/4
Safe working load 7.257kg
Weight 17.2
Application Tail
Sheave size 10×1 3/4
Safe working load 7.257kg
Weight 17.2
Application Tail

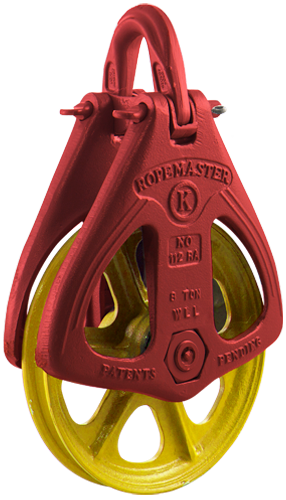

112RA
Rope size 1/2-5 /8″
Sheave size 12×1 3/4
Safe working load 7.257kg
Weight 21.3
Application Tail
Sheave size 12×1 3/4
Safe working load 7.257kg
Weight 21.3
Application Tail

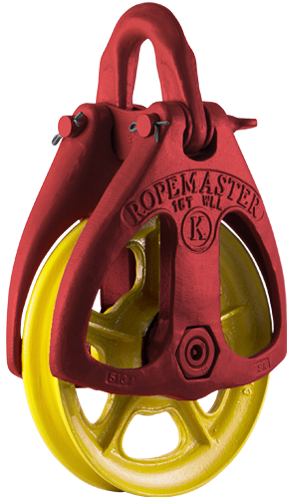

513a
Rope size 1/4-7 /8″
Sheave size 13×1 1/2
Safe working load 13,607kg
Weight 28.6kg
Application Tail + Rider
Sheave size 13×1 1/2
Safe working load 13,607kg
Weight 28.6kg
Application Tail + Rider

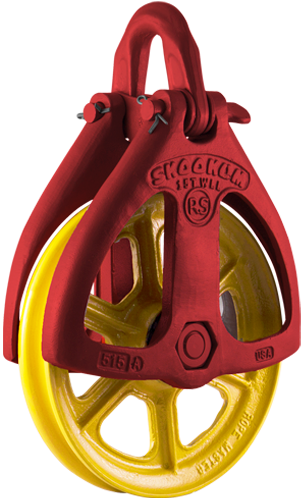

515a
Rope size 7/8-1″
Sheave size 15×2 1/2
Safe working load 13,607kg
Weight 33.1kg
Application Tail + Rider
Sheave size 15×2 1/2
Safe working load 13,607kg
Weight 33.1kg
Application Tail + Rider

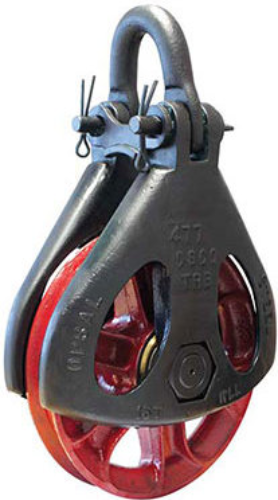

OS 47722/OS 48722
Rope size 7/8″
Sheave size 14×2 1/4
Safe working load 15,000kg
Weight 35kg, 43.4kg
Application Tail + Rider
Sheave size 14×2 1/4
Safe working load 15,000kg
Weight 35kg, 43.4kg
Application Tail + Rider
2214
Rope size 11/8-1 1/4″
Sheave size 14×2 1/2″
Weight 58.9kg
Sheave size 14×2 1/2″
Weight 58.9kg
2214
Rope size 11/8-1 1/4″
Sheave size 14×2 1/2″
Weight 58.9kg
Sheave size 14×2 1/2″
Weight 58.9kg
smash plate
fall block

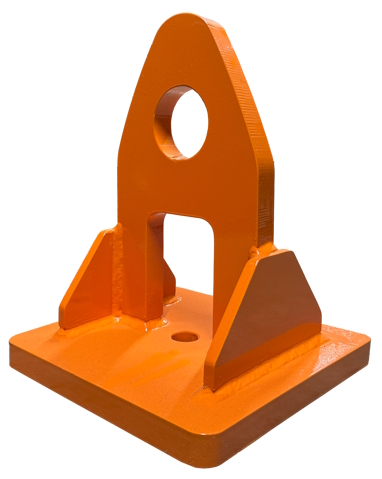

Rider Block smash plate
For 3/4″, 7/8″ & 1″ main line
Working Load Limit 31.1t
Working Load Limit 31.1t
C & R Fall Block
Rope size 7/8″
Sheave size 13″
Weight 130kg
Sheave size 13″
Weight 130kg
Rider

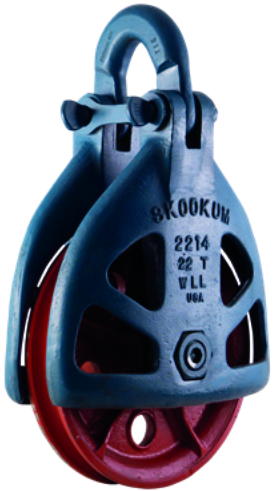

R4 2214
Rope size 11/8-1 /4″
Sheave size 14×2″
Weight 58.9kg
Sheave size 14×2″
Weight 58.9kg

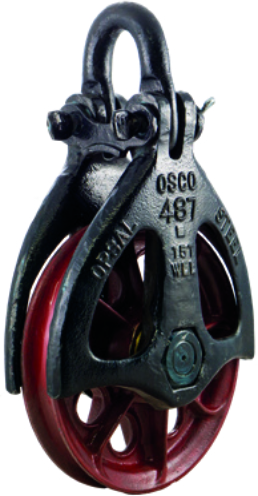

os 47722
os48728
Rope size 1-1/ 1/8″
Sheave size 14″
Weight 35kg, 44kg
Sheave size 14″
Weight 35kg, 44kg

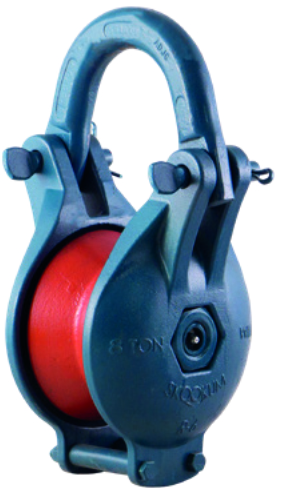

tommy moore
R4
Rope size 3/8-1 /2
Sheave size 4×2″
Safe working load 4,500kg
Weight 5kg
Throat width 23/4″
Opening height 5″
Sheave size 4×2″
Safe working load 4,500kg
Weight 5kg
Throat width 23/4″
Opening height 5″
R6
Rope size 3/8-1 /2
Sheave size 6×3″
Safe working load 7,200kg
Weight 13.6kg
Throat width 4″
Opening height 6 1/2″
Sheave size 6×3″
Safe working load 7,200kg
Weight 13.6kg
Throat width 4″
Opening height 6 1/2″
r8
Rope size 1/2-5 /8
Sheave size 8×3″
Safe working load 7,200kg
Weight 19.5kg
Throat width 4 1/2″
Opening height 7 1/4″
Sheave size 8×3″
Safe working load 7,200kg
Weight 19.5kg
Throat width 4 1/2″
Opening height 7 1/4″
508
Rope size 1-1 1/8″
Sheave size 8×4 1/2″
Safe working load 13,608kg
Weight 32.7kg
Throat width 5 1/2″
Opening height 6″
Sheave size 8×4 1/2″
Safe working load 13,608kg
Weight 32.7kg
Throat width 5 1/2″
Opening height 6″

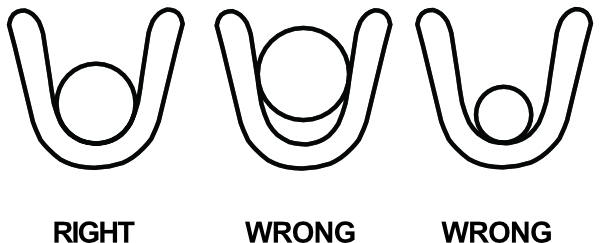

maintenance
Grease regularly (daily or at least weekly). We frequently see blocks damaged due to bearings running dry. Keep the side plates screwed tightly. Be careful grabbing blocks with loader grapple.
