rigging
Rigging

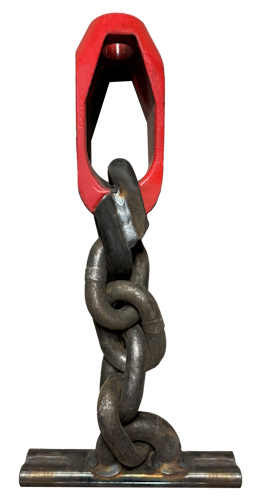

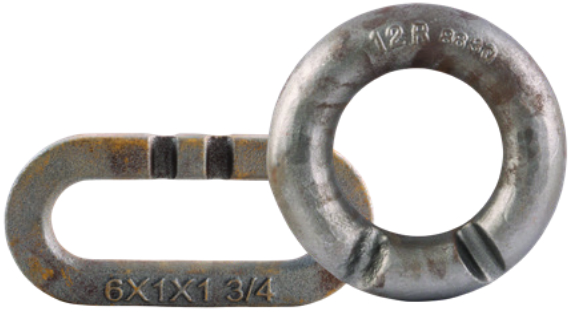

weldable repair links weldable grapple ring
Size 1″, 1/4″, 1 1/2
Weight 1.4kg, 2.7kg, 4.9kg
Size 115x45mm
Weight 5.46kg
Weight 1.4kg, 2.7kg, 4.9kg
Size 115x45mm
Weight 5.46kg
grapple shackle
Size 1 1/2″ pin 26t

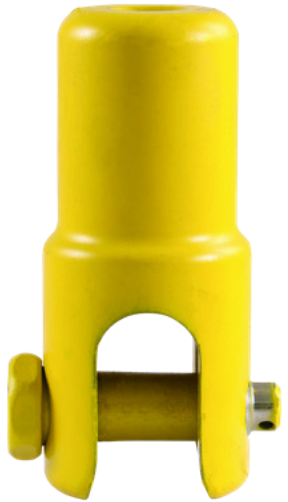

dropline sockets
Size 5/8-3 /4″
3/4-7/8
3/4-7/8

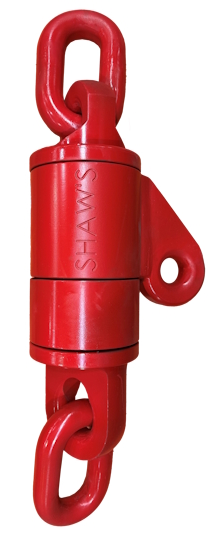

Three way swivel
| Code | Size | Max Rope Size [Inch] | Link Size [mm] | Approx Weight [kg] |
|---|---|---|---|---|
| LS3WL26S | LIGHT | 1 1/4 | 35 | 50 |
hammerlocks g80
| CODE | SIZE [mm] | WORKING LOAD LIMIT [t] | CHAIN SIZE [t] | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| G8CL08R | 8 | 2 | 7+8 | 0.2 |
| G8CL10R | 10 | 3.15 | 10 | 0.3 |
| G8CL13R | 13 | 5.3 | 13 | 0.7 |
| G8CL16R | 16 | 8 | 16 | 1.1 |
| G8CL20R | 20 | 12.5 | 19+20 | 1.9 |
| G8CL22R | 22 | 15 | 22 | 3 |
| G8CL26R | 26 | 21.2 | 26 | 4.6 |
| G8CL32R | 32 | 31.5 | 32 | 8.6 |

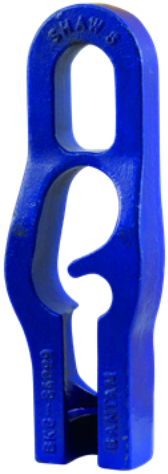

mcgovern hooks
| CODE | SIZE | ROPE SIZE [Inch] | FERRULE SIZE | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| LBHD | DWARF | 1/2, 5/8 | LB5+LB4 | 2.7 |
| LBHB | BANTAM | 1/2, 5/8, 3/4 | B5+B6 | 4.5 |
| LBHL | LIGHT | 3/4, 7/8, 1 | L6+L7+L8 | 7.2 |
| LBHJ | JUNIOR | 1, 1 1/8 | J7+J8+J9 | 13.1 |
| LBHS | STANDARD | 1 1/8, 1 1/4, 1 3/8 | S10+S11 | 17.2 |

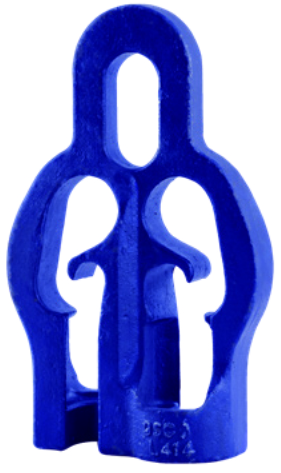

double mcgovern hooks
| CODE | SIZE | ROPE SIZE [Inch] | FERRULE SIZE | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| LBHB2 | BANAM | 1/2, 5/8, 3/4 | B4+B5+B6 | 6.8 |
| LBHL2 | LIGHT | 3/4, 7/8, 1 | L6+L7+L8 | 17.7 |
| LBHJ2 | JUNIOR | 1, 1 1/8 | J7+JB+J9+J10 | 20.4 |

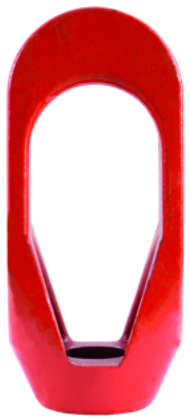

swivel dees
| CODE | SIZE | ROPE SIZE [Inch] | FERRULE SIZE [inch] | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| LSD22 | LIGHT | 3/4, 7/8, 1 | L6+L7 | 2.7 |
| LSD28 | JUNIOR | 1, 1 1/8 | JB+J9 | 5 |

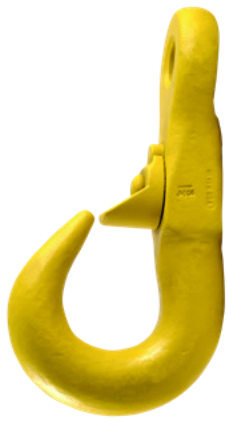

buzzard hooks / swivel end
| CODE | SIZE | ROPE SIZE [Inch] | APPROX WEIGHT [kg] |
|---|---|---|---|
| LBUZZ13 | 1 3/8 | 1/2 | 5 |
| LBUZZ16 | 1 1/2 | 5/8 | 5/4 |
| LBUZZ19 | 1 3/4 | 3/4 | 6.3 |
| LBUZZ22 | 2 | 7/8 | 8.2 |
| LBUZZ26 | 2 1/4 | 1 | 10 |
| LBUZZ13SW | 1 3/8 | 1/2 | 5.5 |
knockout shackles
| CODE | BODY DIA [Inch] | PIN DIA [Inch] | WORKING LOAD LIMIT [t] | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| LKOS3218 | 1 1/8 | 1 1/4 | 16.3 | 3.4 |
| LKOS3521 | 1 1/4 | 1 3/8 | 19 | 4.5 |
| LKOS3826 | 1 3/8 | 1 1/2 | 23.5 | 6.8 |
| LKOS4231 | 1 1/2 | 1 5/8 | 28.1 | 7.7 |
| LKOS4435 | 1 5/8 | 1 3/4 | 31.7 | 9.5 |
| LKOS5141 | 1 3/4 | 2 | 37.2 | 12.7 |

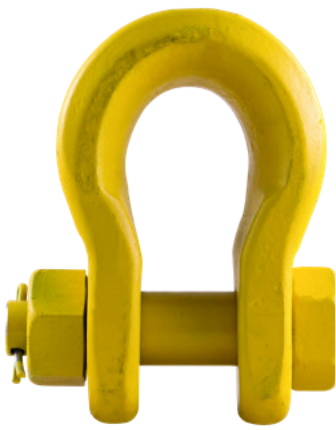

wide body shackles
| CODE | SIZE [inch] | PIN DIA [inch] | APPROX WEIGHT [kg] |
|---|---|---|---|
| LGLSWB4231 | 1 1/2 | 1 5/8 | 12.2 |
| LGLSWB5241 | 1 5/8 | 1 3/4 | 15 |

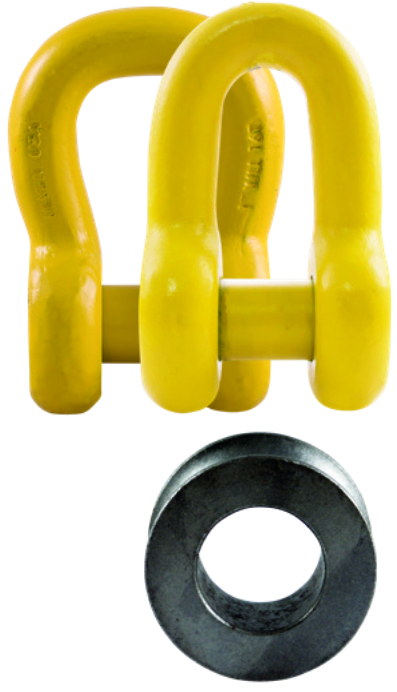

flush pin shackles
| CODE | SIZE [inch] | PIN DIA [inch] | WORKING LOAD LIMIT [t] | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| LFP22FPB | 3/4 | 7/8 | 8.1 | 1.36 |
| LFP26FPB | 7/8 | 1 | 10.9 | 1.81 |
| LFP28FPB | 1 | 1 1/8 | 14.5 | 1.95 |
| LFP28FPD | 1 | 1 1/8 | 14.5 | 1.86 |
| LFP32FPD | 1 1/8 | 1 1/4 | 16.3 | 2.27 |
| LFP35FPD | 1 1/4 | 1 3/8 | 19 | 3.18 |
| LFP38FPD | 1 3/8 | 1 1/2 | 23.5 | 4.54 |
| LFP42FPD | 1 1/2 | 1 5/8 | 28.1 | 4.99 |
| LFPR22 | ROLLER | 7/8 | ||
| LFPR26 | ROLLER | 1 | ||
| LFPR28 | ROLLER | 1 1/8 |
tower shackles
| CODE | BODY DIA [inch] | PIN DIA [inch] | WORKING LOAD LIMIT [t] | APPROX WEIGHT [kg] |
|---|---|---|---|---|
| LTS4435 | 1 5/8 | 1 3/4 | 31 .7 | 9.5 |

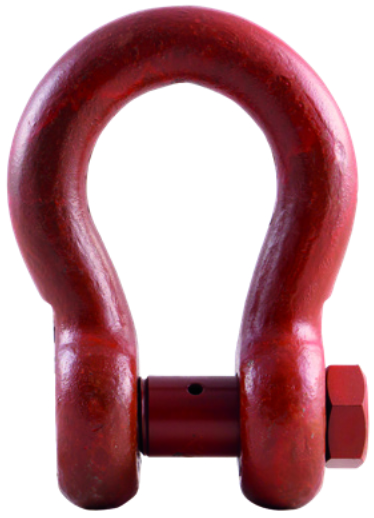

Grapple Shackle
#64, 1 1/2″ pin

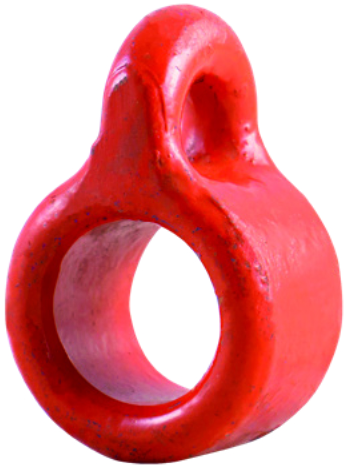

mainline skidder ring
Size 5/8-3 /4″
Rope Size 5/8″, 3/4″
Weight 0.5kg, 0.9kg
Rope Size 5/8″, 3/4″
Weight 0.5kg, 0.9kg

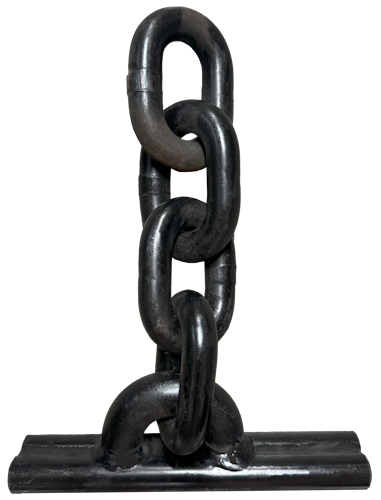

Logging toggle
Heavy Duty
logging toggle
Heavy duty, with swivel Dee

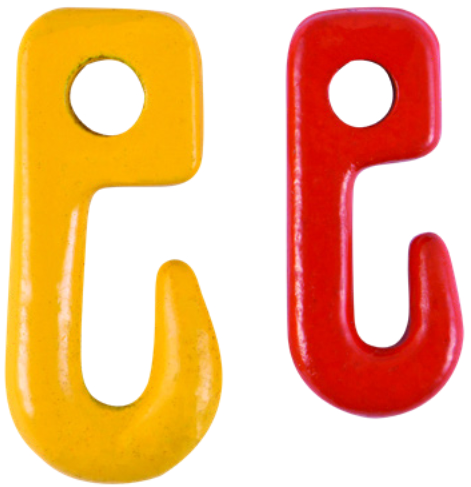

strawline hook
Standard 3/8″, 7/16″
Arrowhead 3/8
Arrowhead 3/8
strawline SWIVEL
For 9, 10, 11mm rope

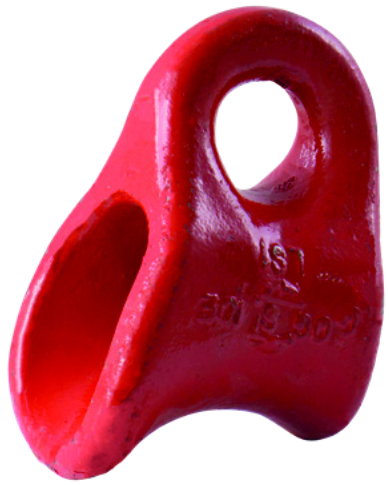

logslider mainline rings
Rope 5/8, 7/8
Weight 1kg
Weight 1kg

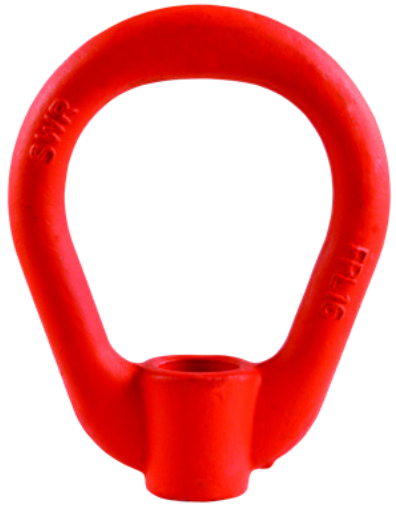

PeAR RING c/w wedges
For 5/8″ or 3/4″ chokers

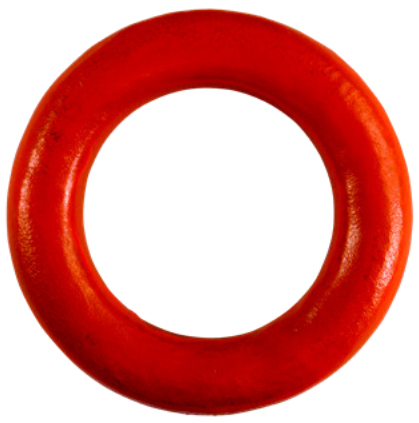

forged high strength rings
| CODE | INTERNAL DIA [mm] | RING MATERIAL DIA [mm] | APPROX WEIGHT [kg] |
|---|---|---|---|
| LRF2075 | 75 | 20 | 0.75 |
| LRF2580 | 80 | 25 | 1.4 |
| LRF3090 | 90 | 30 | 1.9 |
| LRF30110 | 110 | 30 | 2.9 |

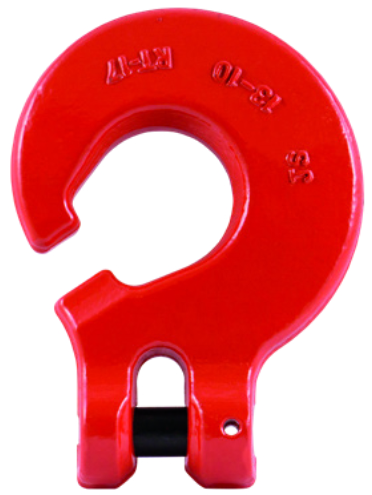

choker chain hooks
| Code | Size [mm] | Working Load Limit [t] | Grade | Approx Weight [kg] |
|---|---|---|---|---|
| G8CHOKE08 | 8 | 2 | G80 | 0.50 |
| G8CHOKE10 | 10 | 3.2 | G80 | 0.95 |
| G8CHOKE13 | 13 | 6.5 | G100 | 0.85 |

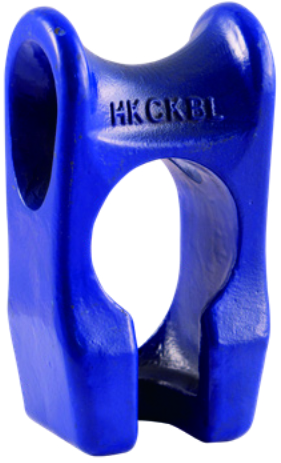

Chocker strop Hooks
| Code | Size | Ideal Stop Size [Inch] | Possible Strop Size [Inch] | Ferrule Size | Approx Weight [kg] |
|---|---|---|---|---|---|
| LHKCKM | MIDGET | 1/2 | 1/2 | M4 | 0.7 |
| LHKCKD | DWARF | 5/8 | 5/8 | LB5 | 1.5 |
| LHKCKB | BANTAM | 3/4 | 3/4 | B5+B6 | 1.8 |
| LHKCKBL | BANTAM L/W | 3/4 | 3/4 | B5+B6 | 1.2 |
| LHKCKL | LIGHT | 7/8 | 7/8 | L6+L7+L8 | 4.1 |
| LHKCKLL | LIGHT L W | 7/8 | 7/8 | L6+L7+L8 | 2.5 |
| LHKCKLK | LIGHT JUNIOR | 1 | 1 | J8+J9+J10 | 5.2 |

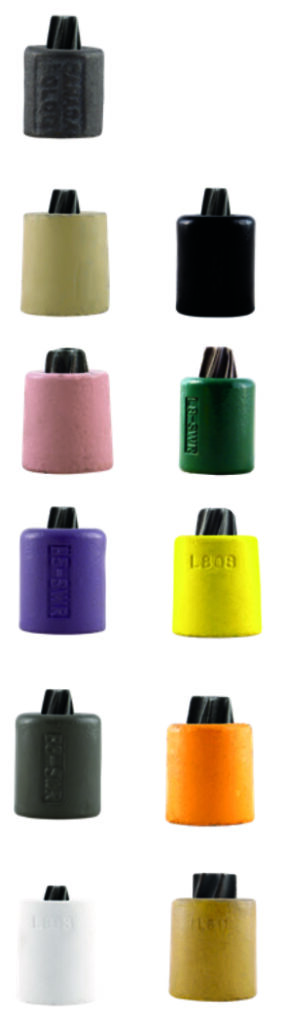

ferrules
| Code | Colour | Rope DIA [inch] | Ferrule DIA [Inch] | Ferrule Length [Inch] | Ferrule Size [Inch] |
|---|---|---|---|---|---|
| LSWF13S | SILVER | 1/2 | 1 1/8 | 1 1/4 | M4 |
| LSWF13C | CREAM | 1/2 | 1 1/2 | 1 3/4 | D4 |
| LSWF16C | PINK | 9/16, 5/8 | 1 1/2 | 1 3/4 | D5 |
| LSWF16M | MAROON | 5/8 | 1 5/8 | 2 | B5 |
| LSWF19G | GREY | 3/4 | 1 5/8 | 2 | B6 |
| LSWF19W | WHITE | 3/4 | 2 1/8 | 2 9/16 | L6 |
| LSWF22B | BLACK | 7/8 | 2 1/8 | 2 9/16 | L7 |
| LSWF26G | GREEN | 1 | 2 1/8 | 2 9/16 | L8 |
| LSWF28Y | YELLOW | 1 1/8 | 2 3/8 | 2 9/16 | J9 |
| LSWF320 | ORANGE | 1 1/4 | 2 3/8 | 2 9/16 | J10 |
| LSWF35G | GOLD | 1 3/4 | 2 3/4 | 3 | S11 |

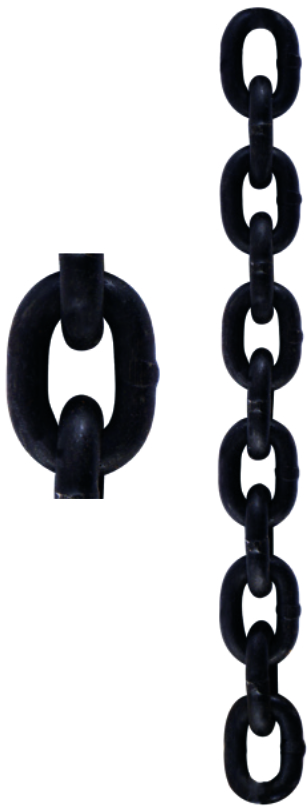

rigging & Choker chain g80
| Code | Size [mm] | Working load [t] | Weight [kg/m] |
|---|---|---|---|
| G8CH08 | 8 | 2 | 1.4 |
| G8CH10 | 10 | 3.15 | 2.2 |
| G8CH13 | 13 | 5.3 | 3.7 |
| G8CH16 | 16 | 8 | 5.6 |
| G8CH19 | 19 | 11.2 | 7.8 |
| G8CH20 | 20 | 12.5 | 8.78 |
| G8CH22 | 22 | 15 | 10.6 |
| G8CH26 | 26 | 21.2 | 14.8 |
| G8CH32 | 32 | 31.5 | 21.6 |

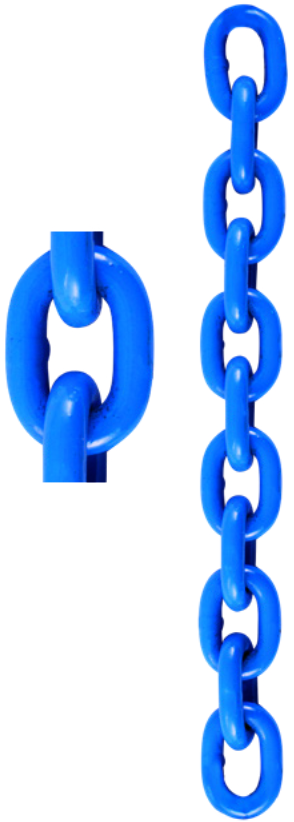

rigging & Choker chain g100
| Code | Size [mm] | Working load [t] | Weight [kg/m] |
|---|---|---|---|
| G10CH08 | 8 | 2.5 | 1.45 |
| G10CH10 | 10 | 4 | 2.25 |
| G10CH13 | 13 | 6.5 | 3.76 |
| G10CH16 | 16 | 10 | 5.64 |

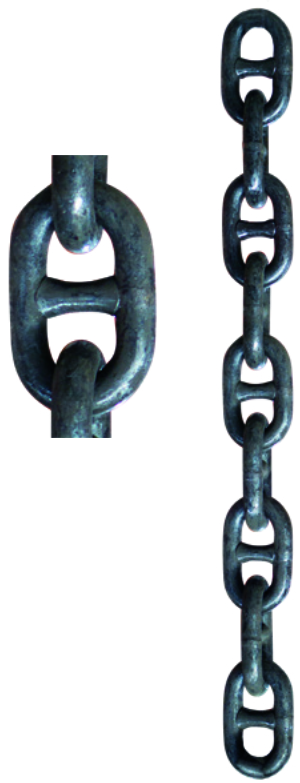

stud link
| Code | Size [mm] | U1 MBL [t] | U2 MBL [t] | U3 MBL [t] | Weight [kg/m] |
|---|---|---|---|---|---|
| CHSL32 | 32 | 42.5 | 59.4 | 84.9 | 23.9 |
| CHSL36 | 36 | 53.3 | 74.6 | 107 | 30.2 |
| CHSL38 | 38 | 59.2 | 82.7 | 118 | 33.7 |
| CHSL42 | 42 | 71.6 | 100 | 142 | 40.5 |
| CHSL50 | 50 | 100 | 139 | 199 | 57 |
rigging accessories

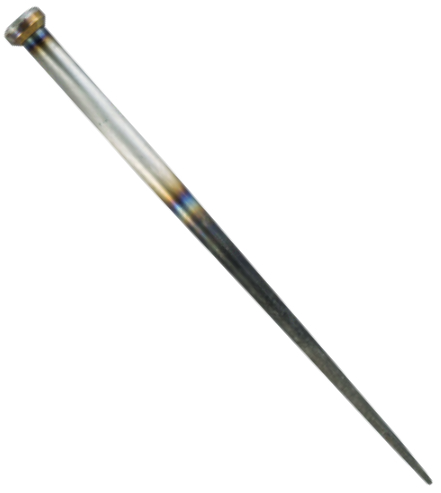

marlin spikes
Sizes 10″, 12″, 18″, 10″, 24″, 27″

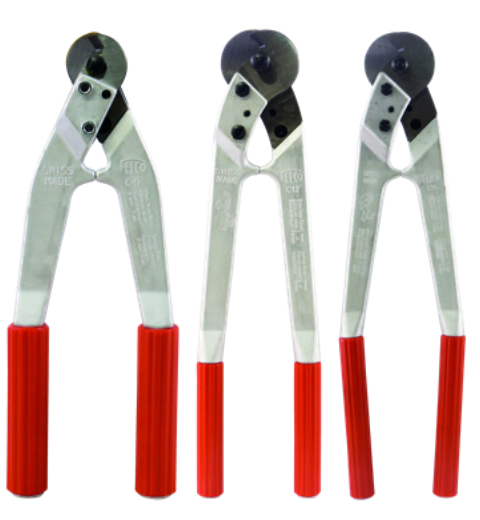

felco wirerope cutters
Sizes C7, C9, C12, C16

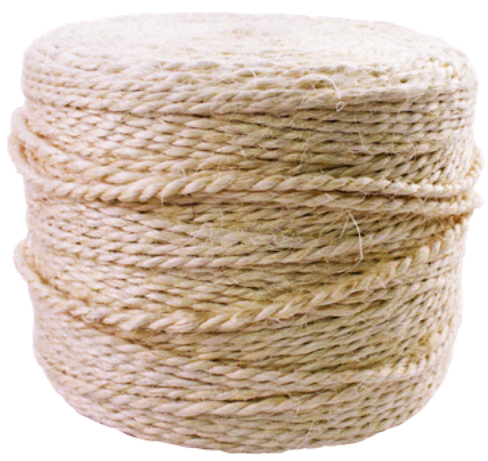

lASHING TWINE
440mm

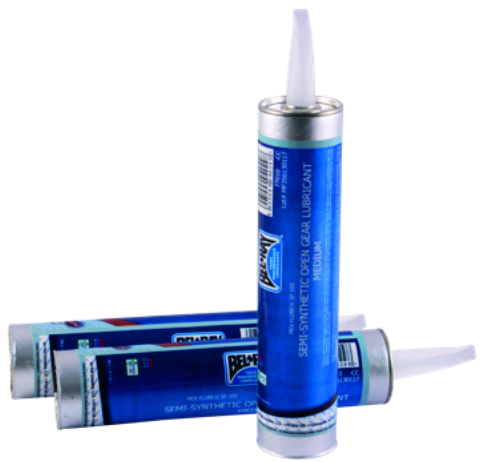

belray gear lubricant
12 pack, semi fluid hauler open gear lubricant

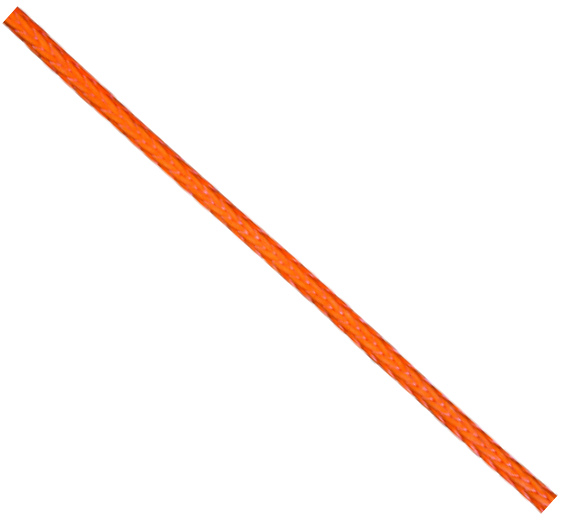

synthetic strawline
8 x lighter, 70% stronger than steel wire. Low stretch product so virtually no recoil in the event of failure and easy to splice. NOMINAL B.S 124.6kN/ NOMINAL B.S, 12.5t/ Weight 5.9kg

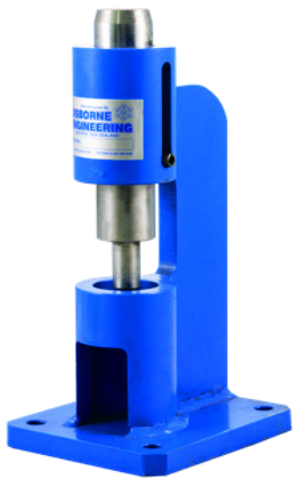

ferrule punch
STANDARD
Rope dia. 5/8″, 3/4″
Ferule B5+B6
No. of dies 1
LARGE
Rope dia 5/8″, 3/4″, 7/8″, 1″
Ferrule L6+L7+L8+B5+B6
No. of dies 2
Rope dia. 5/8″, 3/4″
Ferule B5+B6
No. of dies 1
LARGE
Rope dia 5/8″, 3/4″, 7/8″, 1″
Ferrule L6+L7+L8+B5+B6
No. of dies 2

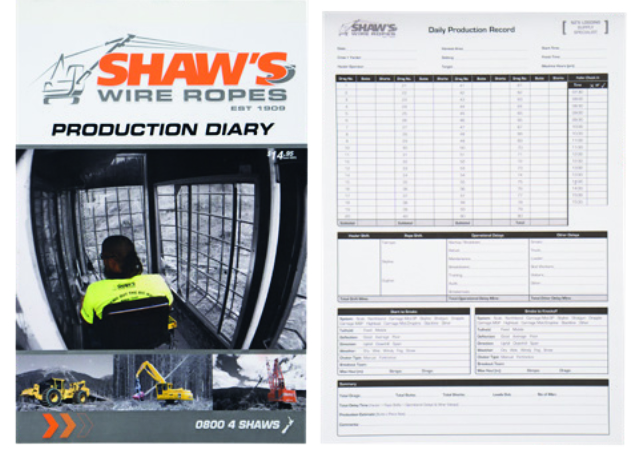

production diary
Track key performance indicators for your cable logging crew

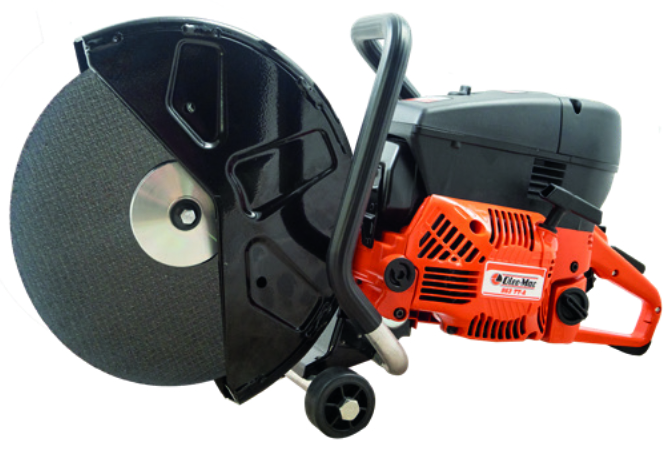

oleomac 14″ cut-off saw
Standard 3/8″, 7/16″
Arrowhead 3/8
Robust and compact, can cut up to a 1 3/8 “ dia. Wire rope.
NOTE: Product doesn’t include grinding disk, disk has been used for photo only.
Arrowhead 3/8
Robust and compact, can cut up to a 1 3/8 “ dia. Wire rope.
NOTE: Product doesn’t include grinding disk, disk has been used for photo only.

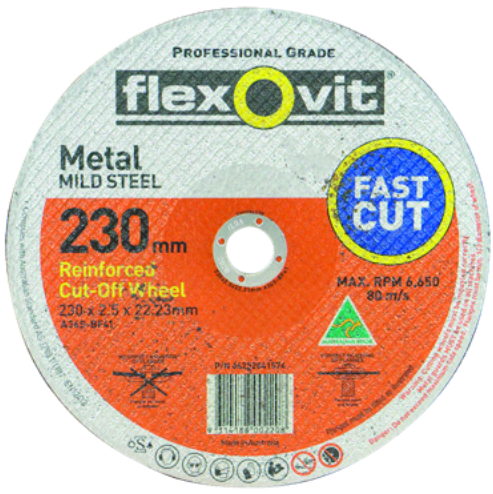

replacement disk
9″ and 14″ Cutting disks
