Material Handling – clamps and trolley

clamps and trolleys

PLATE CLAMPS BEAM CLAMPS BEAM TROLLEY KITO

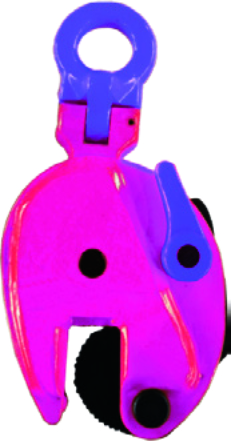

plate clamps

CAPACITY	500[kg]	1000[kg]	2000[kg]	3000[kg]	5000[kg]
CODE	MPC005	MPC010	MPC020	MPC030	MPC050
MODEL	CCL110	CCL111	CCL112	CCL113	CCL115
JAW[mm]	0-15	0-20	0-25	0-30	0-50
NET WEIGHT[kg]	2	4.5	7.3	15	21.6

plate clamps

plate clamps

CAPACITY	1000[kg]	2000[kg]	3000[kg]	5000[kg]	100000[kg]
CODE	MBC010	MBC020	MBC030	MPC050	MPC0100
MODEL	PGC310	PGC320	PGC330	PGC350	PGC390
NET WEIGHT[kg]	3.5	4.5	9.5	11	15
BEAM WIDTH RANGE [mm]	80-245	80-245	90-310	30-310	90-320

beam clamps

beam trolly

CAPACITY	250[kg]	500[kg]	1000[kg]	1500[kg]	2000[kg]	3000[kg]	5000[kg]
CODE	MBT0025	MBT005	MBT010	MBT015	MBT025	MBT030	MBT050
MODEL	PPT303HK	PPT305HK	PPT310HK	PPT315HK	PPT320HK	PPT330HK	PPT350HK
NET WEIGHT[kg]	4	6	12	15	18	30	44
PIN CONFIURATION	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
MIN RADIUS OF CURVE[m]	0.8	0.8	1	1	1.1	1.3	1.4

beam trolley

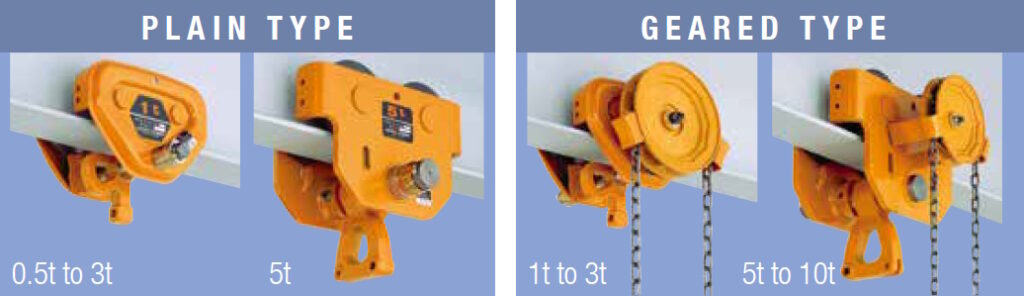

Kito Troll Push & Gear Trolly

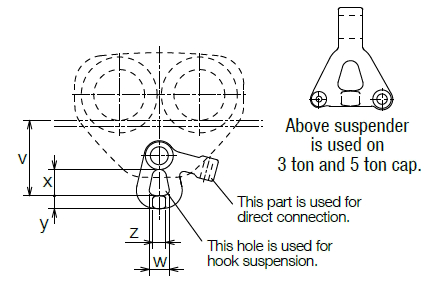

WLL [t]	CODE		FLANGE WIDTH ADJUSTABILITY [mm]			MINIMUM CURVE RADIUS	NET WEIGHT [kg]		HAND CHAIN FOLDED LENGTH [m]	DIMENSIONS [mm]
	PUSH TROLLEY	GEARED TROLLEY	STANDARD	W20*	W30*		TSP	TSG		v	w	x	y	z
0.5	TSP005	TSG005	50 to 102 (58 to 127)	103 to 203 (128 to 203)	204 to 305	1100(1300)	4.5	12	2.5	93 (106)	26 (28)	33 (37)	14 (18)	14(18)
1	TSP010	TSG010	58 to 127	128 to 203	204 to 305	1300	8	12	2.5	106	28	37	18	18(18
1.5	TSP015	TSG015	82 to 153	-	154 to 305	1500	14	18	2.5	129	32	40	22	22
2	TSP020	TSG020	82 to 153	-	154 to 305	1500	14	19	3.0	129	32	40	22	22
2.5	TSP025	TSG025	82 to 153	-	154 to 305	1700	23	27	3.0	144	36	44	27	25
3	TSP030	TSG030	82 to 153	-	154 to 305	1700	23	27	3.0	169	40	48	24	30
5	TSP050	TSG050	100 to 178	-	179 to 305	2300	50	56	3.5	228	60	70	33	36
